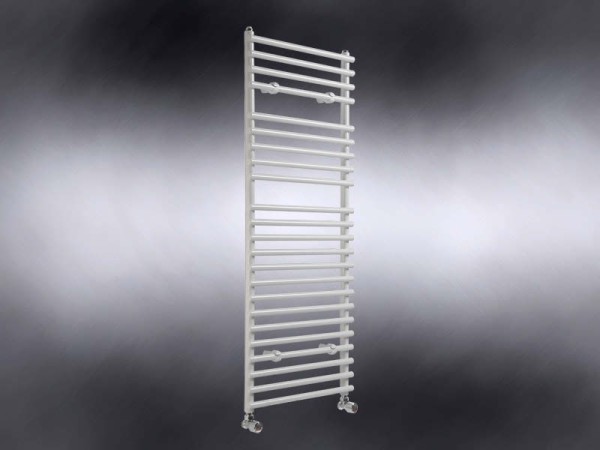

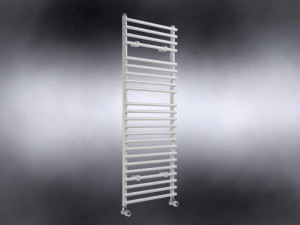

BLU TOWEL RADIATOR TYPES
Blu

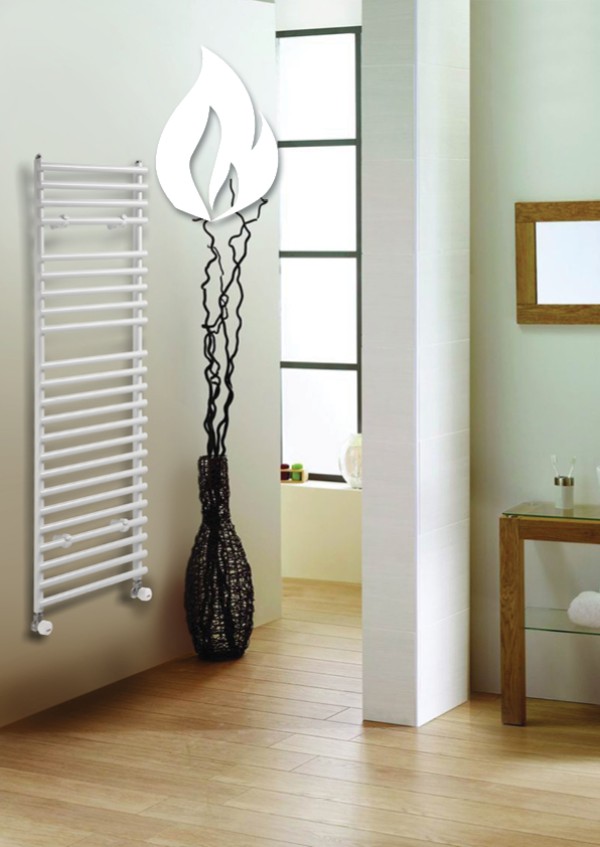

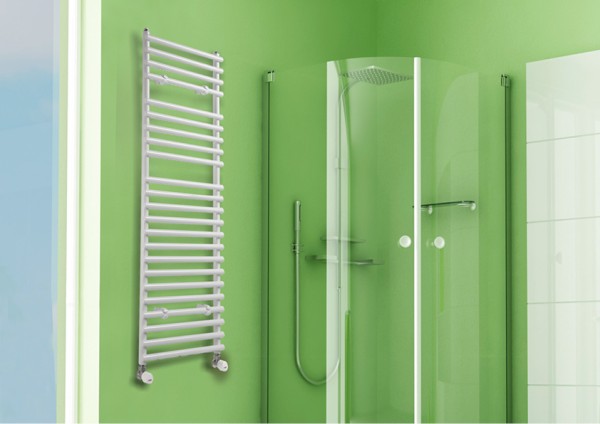

Aesthetic Look

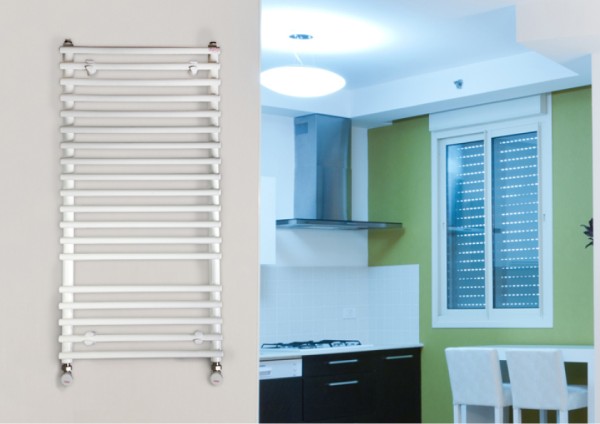

Easily provide your kitchen and bathroom with an aesthetic look with Mastaş’s innovative solutions.
Choosing The Right Heater

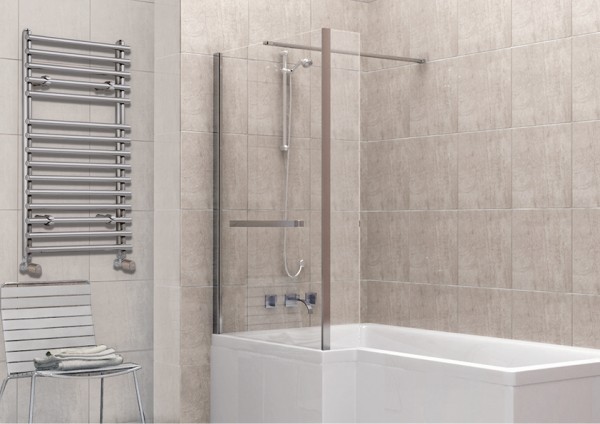

Towel heaters are offered with different design options. Regardless of the design you choose, the matter you should take into consideration is the style of your kitchen or your bathroom and your needs. Mastaş towel heaters offer a wide variety of options with white and inox colour choices that can be produced in various designs and sizes.
|
Standard |
: |
TS EN 442 |
|
Material Structure |
: |
St34-2 / St37 |
|
Surface Treatment |
: |
The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200°C). |
|
Color |
: |
RAL 9016, RAL E3503I |
|
Working Pressure |
: |
9 Bar (10 bar can be produced as requested) |
|
Quality Standard |
: |
TS EN ISO 9001 2015 |
|
Heights |
: |
650 – 800 – 1000 – 1250 - 1700 mm |
|
Width |
: |
500 mm |
|
Water Temperature |
: |
0°C – 120°C |
|
PH Value |
: |
Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be. |
|
Montage |
: |
Connection Standard 2x1/2, , Connection Central Inlet 2x1/2 |
|
Guarantee |
: |
10 Years |
|
Brand |
: |
MASTAŞ |

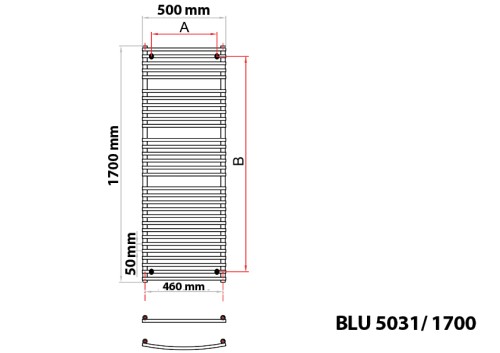

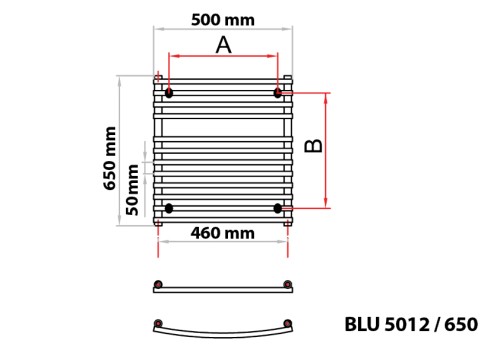

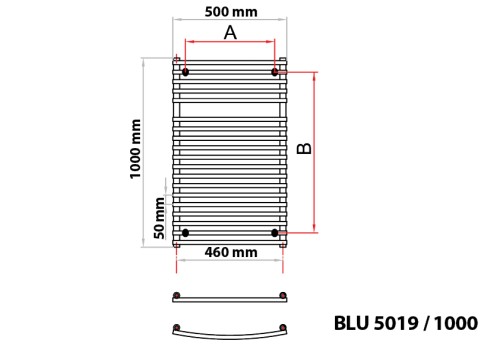

Assembly
|

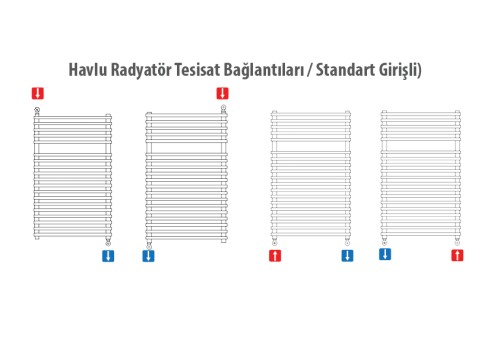

BLU / Connection Standard |
Mounting Dimensions |
|
|
A (mm) |
B (mm) |
|
|
5012 / 650 |
370 |
500 |
| 5015 / 800 | 370 | 650 |
| 5019/ 1000 | 370 | 850 |
| 5015 / 1250 | 370 | 1100 |
| 5021 / 1700 | 370 | 1550 |
| BLU / Connection Standard | Axis Range E (mm) |
| 5012 / 650 | 370 |
| 5015 / 800 | 370 |
| 5019/ 1000 | 370 |
| 5023 / 1250 | 370 |
| 5031 / 1700 | 370 |
|

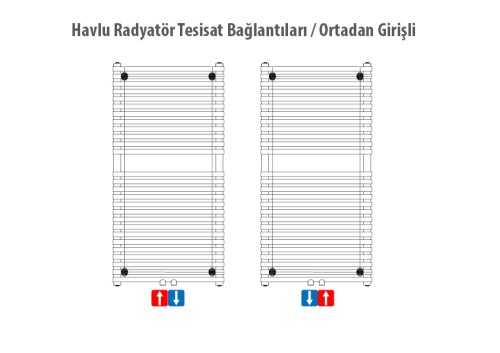

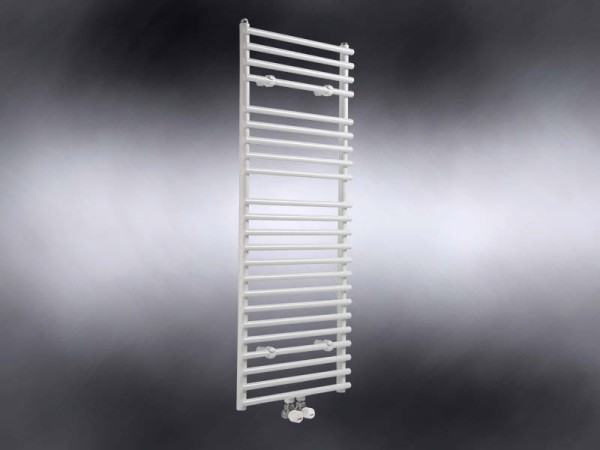

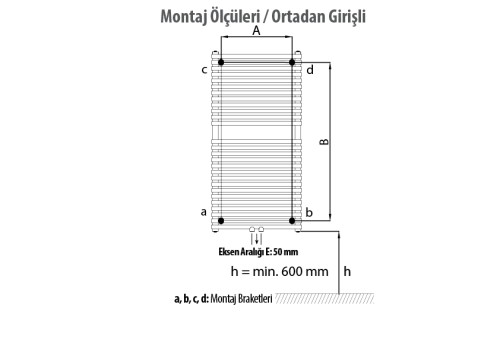

BLU / Connection Central |
Mounting Dimensions |
|
|
A (mm) |
B (mm) |
|
|
5012 / 650 |
370 |
500 |
| 5015 / 800 | 370 | 650 |
| 5019/ 1000 | 370 | 850 |
| 5015 / 1250 | 370 | 1100 |
| 5021 / 1700 | 370 | 1550 |
| BLU / Connection Central | Axis Range E (mm) |
| 5012 / 650 | 50 |
| 5015 / 800 | 50 |
| 5019/ 1000 | 50 |
| 5023 / 1250 | 50 |
| 5031 / 1700 | 50 |
|
Model |
Type |
Type |
Weight (Kg) |
Weight (Kg) |
||||
|
Length (W) |
Height (H) |
T= 50 °C 75-65 / 20 °C(Watt) |
T= 60 °C 90-70/ 20 °C(Watt) |
|||||
|
BLU |
5012 5015 5019 5023 5031 |
500 |
650 800 1000 1250 1700 |
4,90 6,10 7,70 9,40 12,60 |
406 512 654 794 1076 |
512 636 802 967 129 |
||
Blu Towel Radiator | Guarantee
1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening
