Ivigo Wi-Fi Convector

Product Features

Remote Access

Mobile Application

Locking the device with app

Water Resistant

Heating Power Limiter

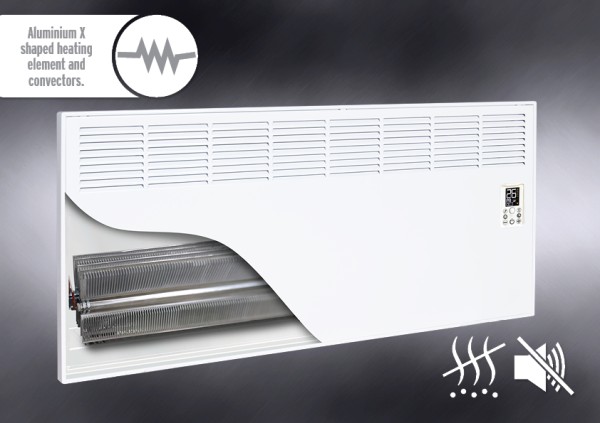

Aluminium X shaped heating element

All smart features in one heater

All smart features in one heater and your heater is at your fingertips wherever you are...

Install the app on your phone and start experiencing this comfort right now.

Install the app

Comfort and economy combined, all settings on your phone...

Control the Power of Your Heater

With this feature, your heater works at the wattage you set.

IPX4

You can also use your convector heater in humid areas.

Technical Specifications

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Professional WIFI Panel Convector
Type	EPK 4550W05	EPK 4550W07	EPK 4570W10	EPK 4570W15	EPK 4590W20	EPK 4590W25
Height mm	450	450	450	450	450	450
Length mm	500	500	700	700	900	900
Depth mm	80	80	80	80	80	80
Weight kg	5.3	5.3	7.1	7.2	8.8	9.2
Electrical Power W	500	750	1000	1500	2000	2500
Voltage V	220-240	220-240	220-240	220-240	220-240	220-240
Current A	2,07-2,26	3,11-3,40	4,13-4,52	6,23-6,80	8,3-8,96	10,40-11,34
Frequency Hz	50-60	50-60	50-60	50-60	50-60	50-60
Electronic Room Temperature Control	Standard	Standard	Standard	Standard	Standard	Standard
Energy Saving Module (Programmable)	Standard	Standard	Standard	Standard	Standard	Standard
On/Off Switch	Standard	Standard	Standard	Standard	Standard	Standard
Cord Length m	1.5	1.5	1.5	1.5	1.5	1.5
Protection Type	I	I	I	I	I	I
Thermostat Against Excessive Heat	Standard	Standard	Standard	Standard	Standard	Standard
Rollover protection switch	Standard	Standard	Standard	Standard	Standard	Standard
Mechanical Thermostat Control	-	-	-	-	-	-
Energy Consumption Display	Standard	Standard	Standard	Standard	Standard	Standard
Room Temperature Display	Standard	Standard	Standard	Standard	Standard	Standard
Real Time Clock	Standard	Standard	Standard	Standard	Standard	Standard
Energy Consumption Monitoring	Standard	Standard	Standard	Standard	Standard	Standard
Daily / Weekly Program	Standard	Standard	Standard	Standard	Standard	Standard
IPX4	Standard	Standard	Standard	Standard	Standard	Standard
WIFI	Standard	Standard	Standard	Standard	Standard	Standard
Motion Sensor	Standard	Standard	Standard	Standard	Standard	Standard
Adaptive Start Feature	Standard	Standard	Standard	Standard	Standard	Standard
Anti-Frost	Standard	Standard	Standard	Standard	Standard	Standard
Heating Power Limiter	Standard	Standard	Standard	Standard	Standard	Standard
Plastic Legs	Standard	Standard	Standard	Standard	Standard	Standard
Wall Mounting Kit	Standard	Standard	Standard	Standard	Standard	Standard
Color Choices	White	White	White	White	White	White
Device Lock	Standard	Standard	Standard	Standard	Standard	Standard

Standard	:	EN 60335-2-30
Material Structure	:	Cold Rolled Steel Iron body: 0.80 mm, frame: 1.00 mm.
Surface process	:	Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing followed by being painted with water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color	:	RAL9016 (Standard)
Heating Unite Group	:	Aluminyum X type resistance and convectors
Quality Standard	:	CE, TUV, TS EN ISO 9001:2015, ECODESIGN
Heights	:	450 mm
Lengths	:	500-700-900 mm
Security	:	The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee	:	3 Years

Profesyonel WIFI Konvektör Model Seçimi
Model	Tavsiye Edilen Isıtıcı Gücü (watt)	Oda Alanı (m²)
EPK 4550 05	500	3 - 6
EPK 4550 07	750	4 - 9
EPK 4570 10	1000	6 - 12
EPK 4570 15	1500	9 - 17
EPK 4590 20	2000	12 - 24
EPK 4590 25	2500	14 - 28

Guarantee

Professional Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
