Ivigo Digital Convector

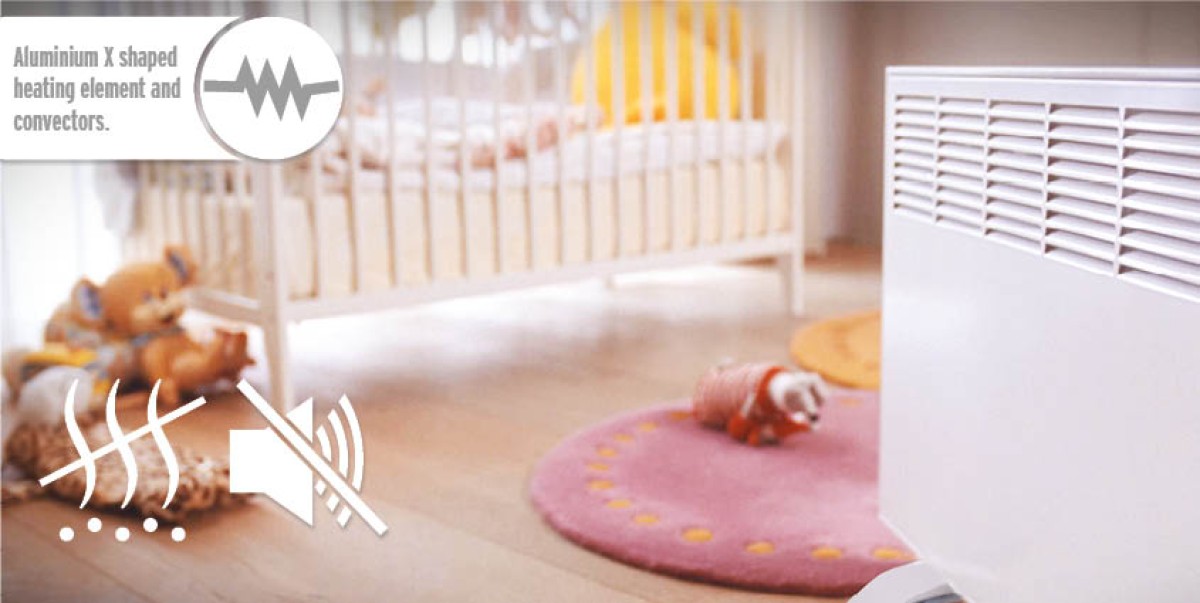

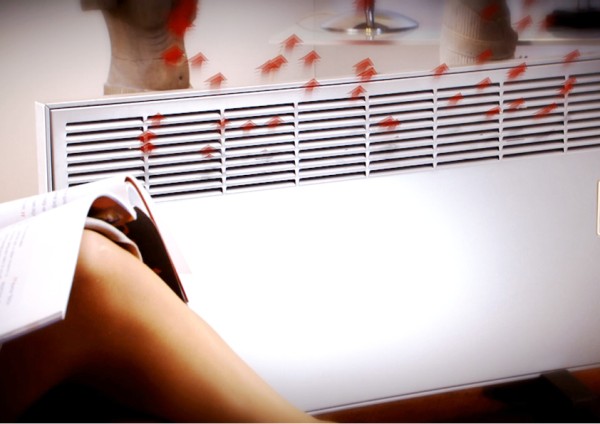

Silent and Doesn’t Burn Dust

Silent and Doesn’t Burn Dust

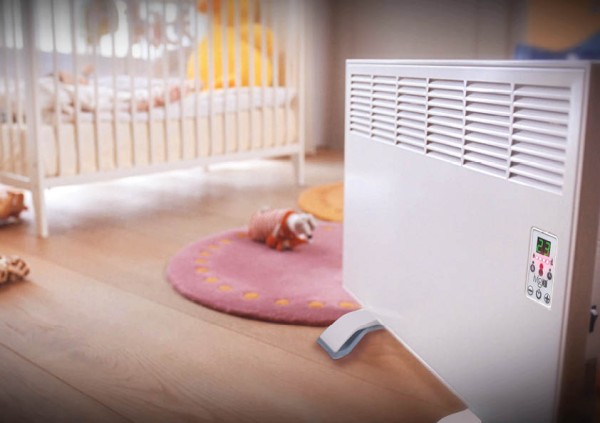

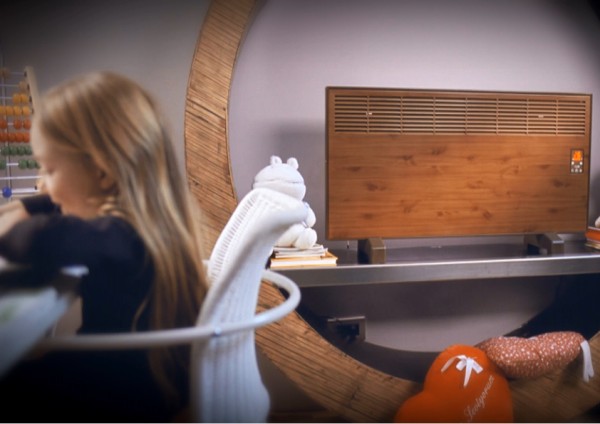

The heater does not burn dust or dry out the air, and as such, offers an ambient air quality and room temperature suitable for infants. It also prevents children from accidental contact burns thanks to the low surface temperature of the device itself.

Safety Lock

Safety Lock

It features a built-in child lock that conveniently prevents tampering, pro- tecting children in the house as well as preventing device settings from being changed.

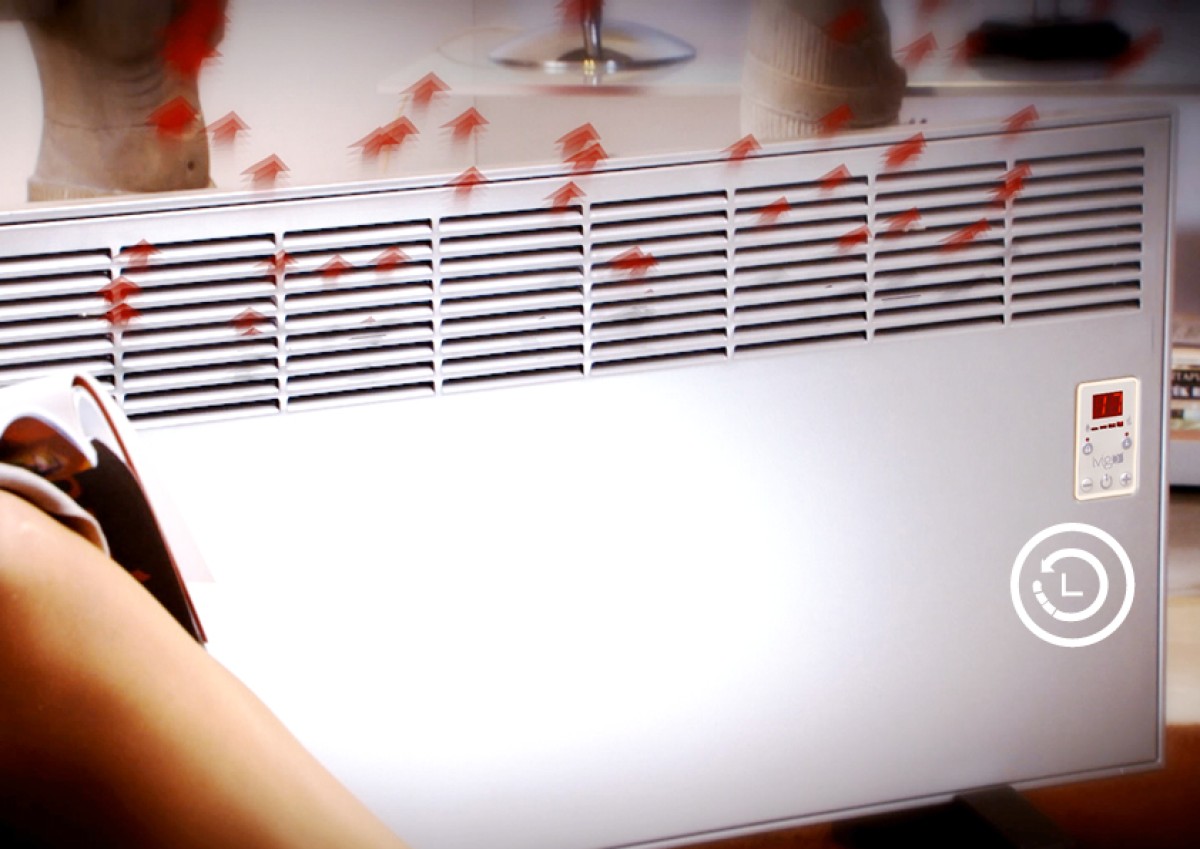

Turn on timer, Turn off timer

Turn on timer, Turn off timer

Thanks to its convenient timer settings, the device can be set to turn on and heat up the room before you wake up, or turned off after a certain amount of time. All you have to do is to press the timer button and set the turn on/ turn off time.

Steady Room Temperature

Steady Room Temperature

You can set the room temperature of your choosing, which the heater will then maintain. It is now child’s play to set babies’ and children’s rooms at the ideal temperature.

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

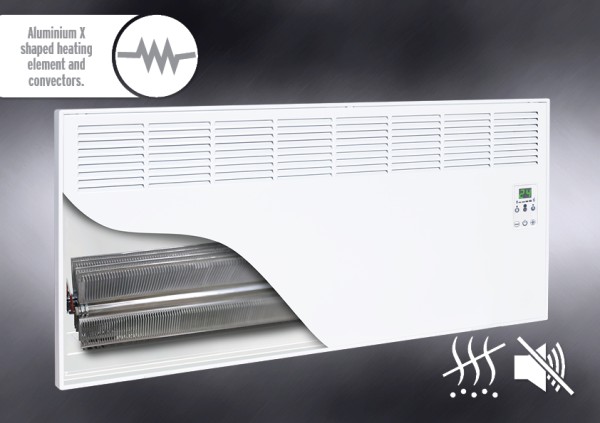

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Digital Panel Convectors

Type

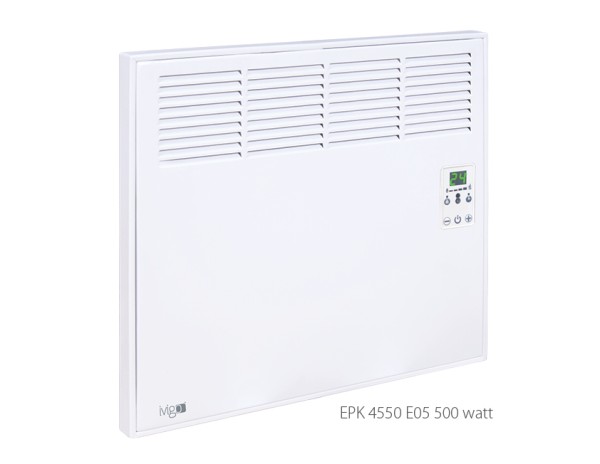

EPK 4550E05

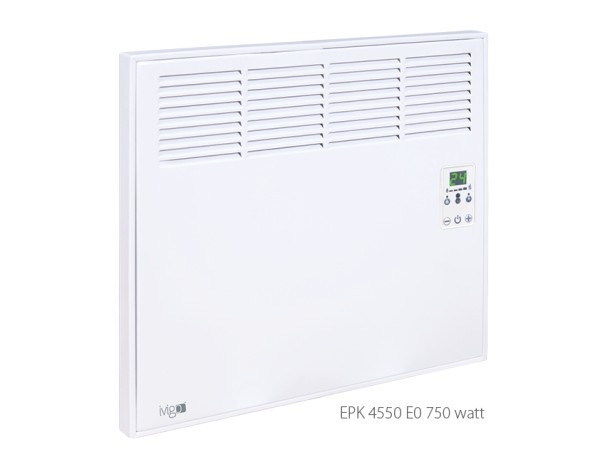

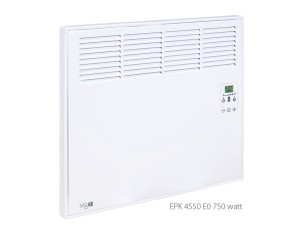

EPK 4550E07

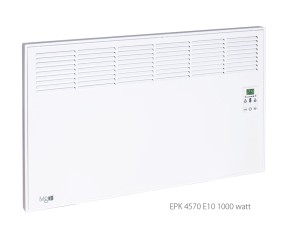

EPK 4570E10

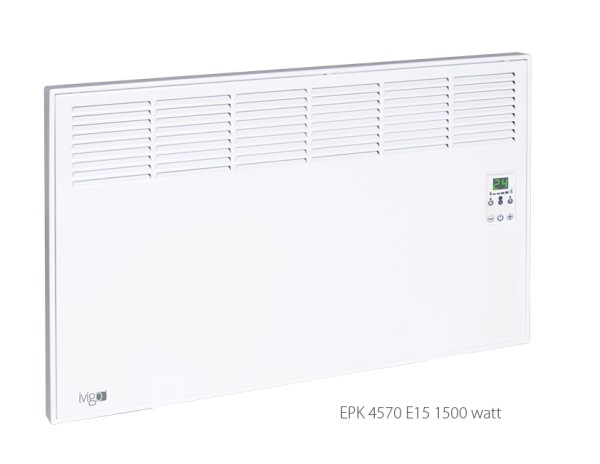

EPK 4570E15

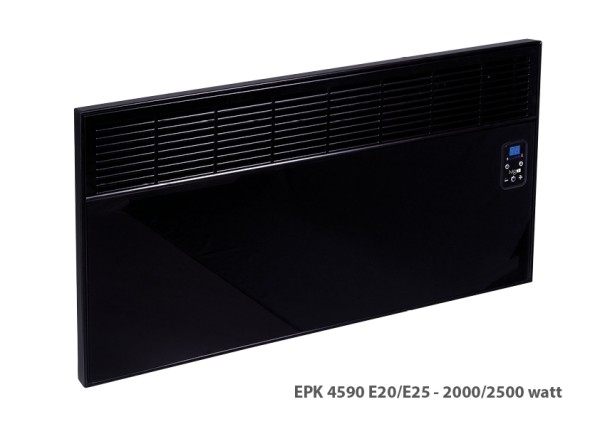

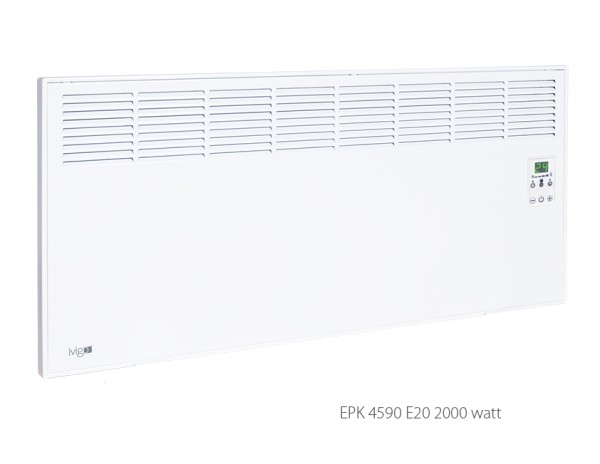

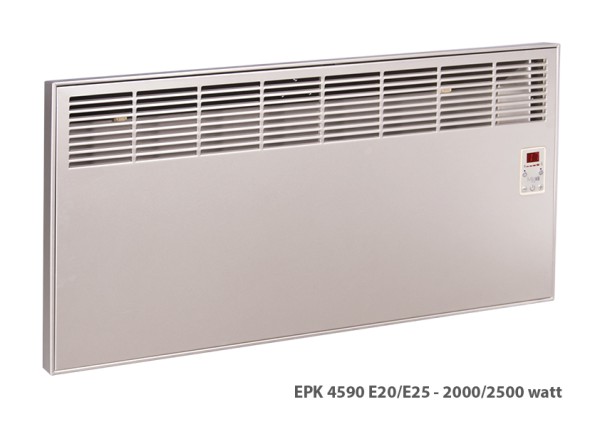

EPK 4590E20

EPK 4590E25

Height mm

450

450

450

450

450

450

Height mm

500

500

700

700

900

900

Depth mm

80

80

80

80

80

80

Weight kg

5.3

5.3

6.8

7.1

8.8

9.2

Electrical Power W

460-550

685-820

910-1085

1370-1630

1825-2150

2280-2720

Voltage V

220-240

220-240

220-240

220-240

220-240

220-240

Current A

2.17

3.26

4.34

6.52

8.69

10.86

Frequency Hz

50-60

50-60

50-60

50-60

50-60

50-60

Electronic Room

Temperature Control

Standard

Standard

Standard

Standard

Standard

Standard

Energy Saving Module

(Programmable)

Standard

Standard

Standard

Standard

Standard

Standard

On / Off Switch

Standard

Standard

Standard

Standard

Standard

Standard

Cord Length m

1.5

1.5

1.5

1.5

1.5

1.5

Protection Type

I

I

I

I

I

I

Thermostat Against Excessive Heat

Standard

Standard

Standard

Standard

Standard

Standard

Mechanical Thermostat Control

-

-

-

-

-

-

Rollover Protection

Sensor

Sensor

Sensor

Sensor

Sensor

Sensor

Energy Consumption Display

Standard

Standard

Standard

Standard

Standard

Standard

Room Temperature Display

Standard

Standard

Standard

Standard

Standard

Standard

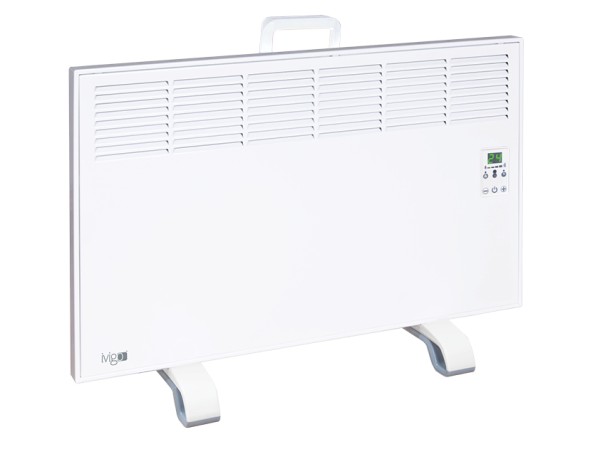

Plastic Legs

Standard

Standard

Standard

Standard

Standard

Standard

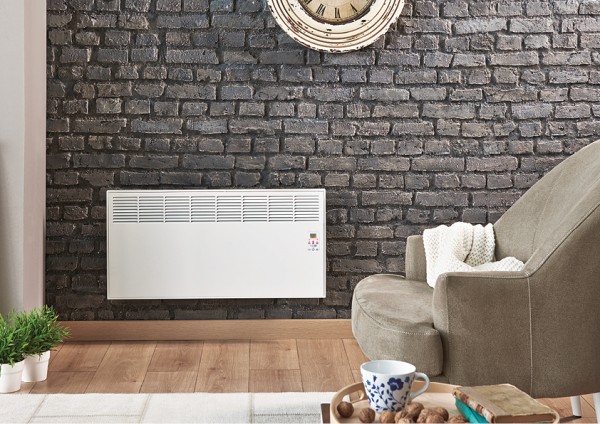

Wall Mounting Kit

Standard

Standard

Standard

Standard

Standard

Standard

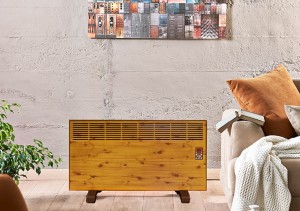

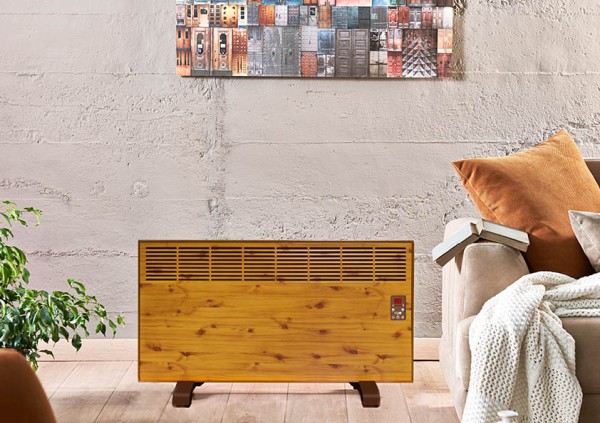

Color Choices

White

White

White

White

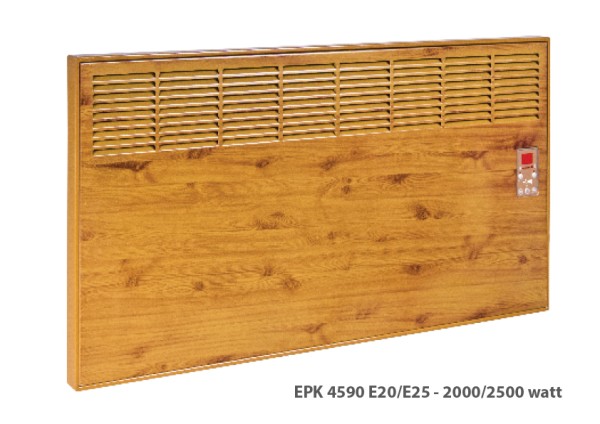

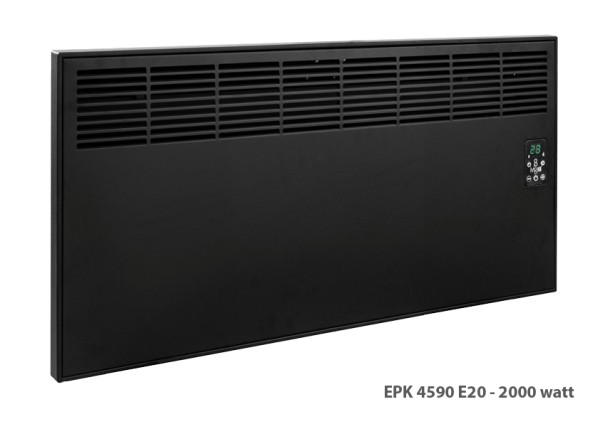

White, Inoks, Wood Style, Black Glass, Black Matte

White, Inoks, Wood Style, Black Glass, Black Matte

Exclusive Keylocker

Optional

Optional

Optional

Optional

Optional

Optional


Standard : EN 60335-2-43
Surface  process : Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color : Electrostatic powder paint, White RAL 9016, Inox RAL E35031, Wood Style, Black Glass, Black Matte
Heating Unite Group : Aluminium X shaped heating element and convectors.
Quality Standard : CE, TUV,  EN ISO 9001:2015
Height : 450 mm
Length : 500 - 700 - 900 mm
Security : The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee : 3 Year



Basic Electric Panel Convector Heater Model Selection

Model

Recommended Heater Power (watt)

Room Area (m2)
EPK 4550 E05 500 3-6
EPK 4550 E07 750 4-9
EPK 4570 E10 1000 6-12
EPK 4570 E15 1500 9-17
EPK 4590 E20 2000 12-24
EPK 4590 E25 2500 14-28

Digital Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.



2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.



3. If the appliance is out of order within the guarantee period, the repair period is added to the guarantee period. Repair period of the unit consists of maximum 30 days. This period commences after the notification date of the breakdown of the unit to the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist. If the repair period of the unit exceeds 15 days the manufacturer, manufacturer-producer or the importer have to provide a unit with similar properties to the usage of the consumer until the repair of the unit is completed.



4. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.



5. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible



6. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.



EN 60335-2-30: 2011 A11: 2012
