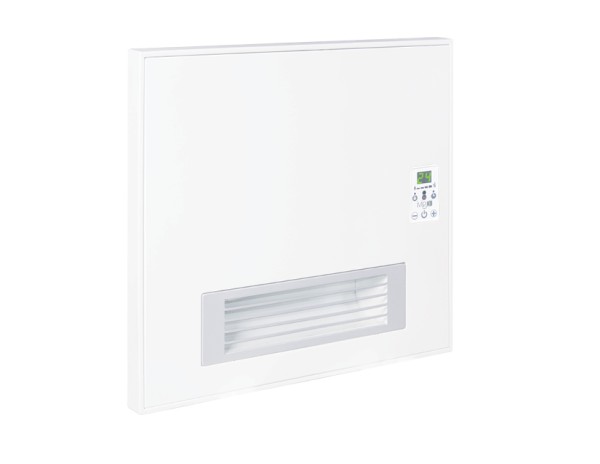

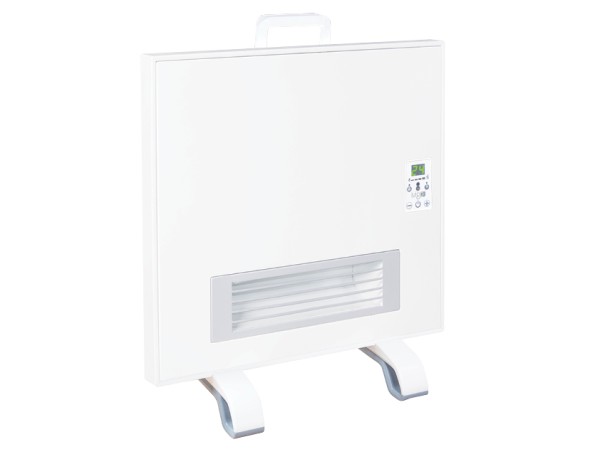

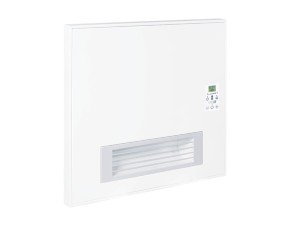

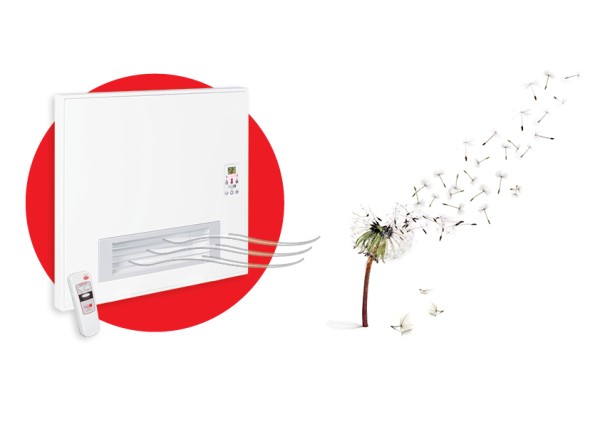

Ivigo Digital Electric Heater With Fan

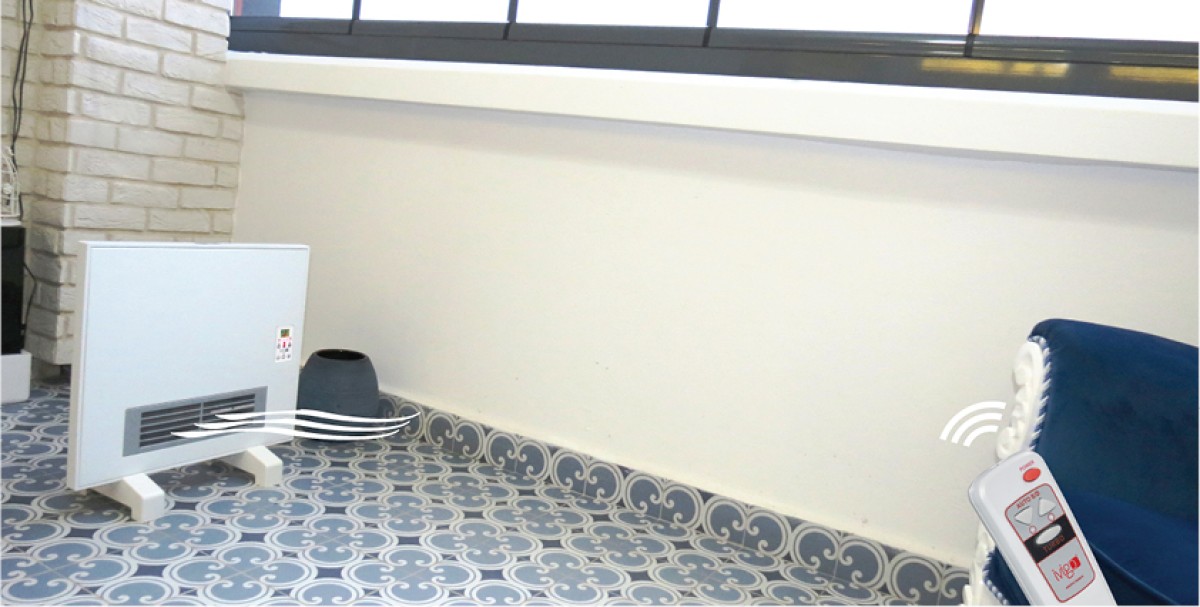

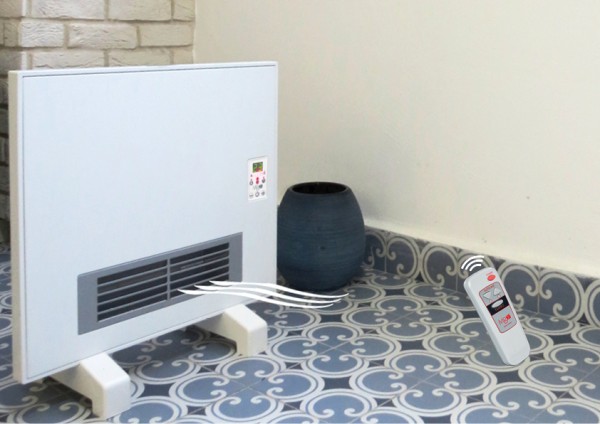

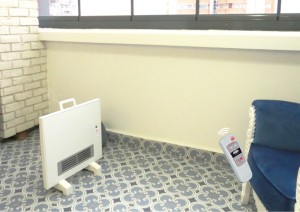

Strong Fan, Ideal for Even Glass Balconies
Thanks to its strong fan, İvigo fan-powered heater is ideal for glass-enclosed balconies, and is capable of heating the room to a set temperature in short notice.
Timer

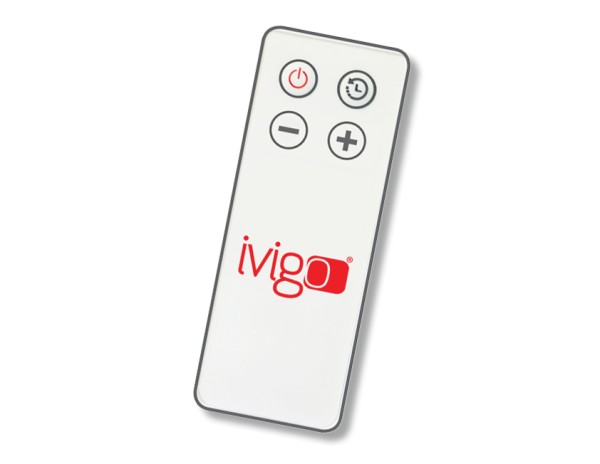

The device can be programmed to turn on or off conveniently, using either the built-in control panel or the remote con- trol.
Safety First
The heater’s power plug has a built-in temperature sensor to offer extra safety against a potential cord or plug overheat that may occur due to faulty or improper power sockets or other reasons.
| Digital Electric Heater With Fan | Technical Specifications | |||||
|
Type/Model |
EFP4550E25 |
||||
|
Height mm |
450 |
||||
|
Length mm |
500 |
||||
|
Depth mm |
98 |
||||
|
Weight kg |
7,8 |
||||
|
Electrical Power W |
2500 |
||||
|
Voltage V |
220-240 |
||||
|
Current A |
10.9 |
||||
|
Frequency Hz |
50-60 |
||||
|
Electronic Room Temperature Control |
Disponible |
||||
|
Energy Saving Module (Programmable) |
Disponible |
||||
|
On / Off Switch |
Disponible |
||||
|
Cord Length m |
2 |
||||
|
Protection Type |
I |
||||
|
Protection Against Water Spill (IP) |
IP 24 |
||||
|
Thermostat Against Excessive Heat |
Disponible |
||||
|
Mechanical Thermostat Control |
- |
||||
|
Energy Consumption Display |
Disponible |
||||
|
Room Temperature Display |
Disponible |
||||
|
Fan |
Disponible |
||||
|
Sound Level dB |
Max. 50 |
||||
|
Color Choices |
White (B) |
||||
|
Remote Control (Standard) |
Disponible |
||||
| Standard | : | EN 60335-2-30 |
| Material Structure | : | Cold Rolled Steel Iron Body: 0.80 mm, Frame: 1.00 mm. |
| Surface process | : | Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing followed by being painted with water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch. |
| Color | : | RAL9016 (Standard) |
| Heating Unite Group | : | Wire coil heating element |
| Quality Standard | : | CE, EN ISO 9001:2008 |
| Height | : | 450 mm |
| Length | : | 500 mm |
| Security | : | The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests. |
| Guarantee | : | 2 Years |
| Digital Electric Heater With Fan Model Selection | ||
| Model | Recommended Heater Power (watt) | Room Area(m²) |
| EFP 4550 E25 | 2500 | 15 - 30 |
The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.
Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2
Electric Heater With Fan | Guarantee
1. The Guarantee Period commences upon the delivery of the unit and is 2 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.
4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:
- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period
- If the maximum repair period is exceeded
- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible
5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
TS EN 60335-2-30: 2011 A11: 2012
