Ivigo Manual Convector

Heats up the Entire Room

Heats up the Entire Room

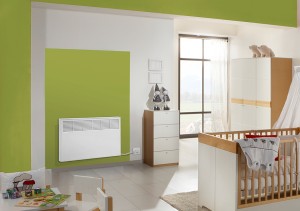

The heater heats up the entire room. It can be used safely in children’s and babies’ rooms. Activates and deactivates automatically based on room temperature.

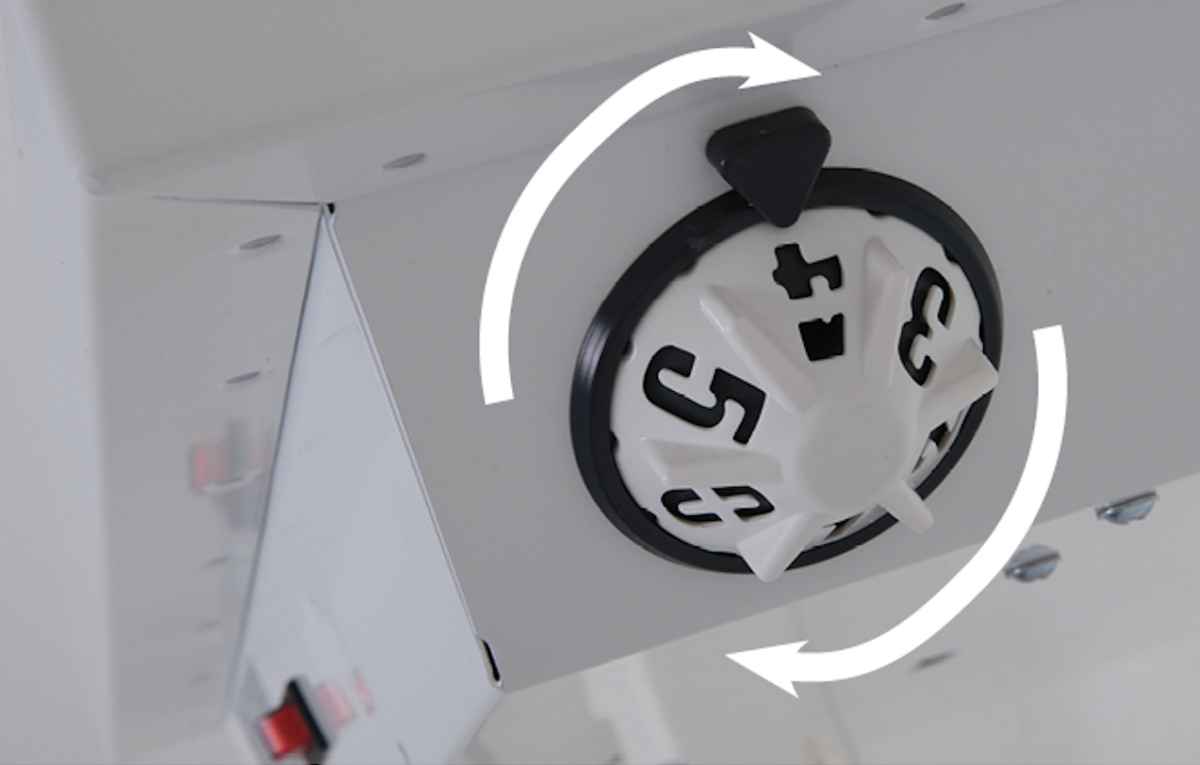

Easy Control

Easy Control

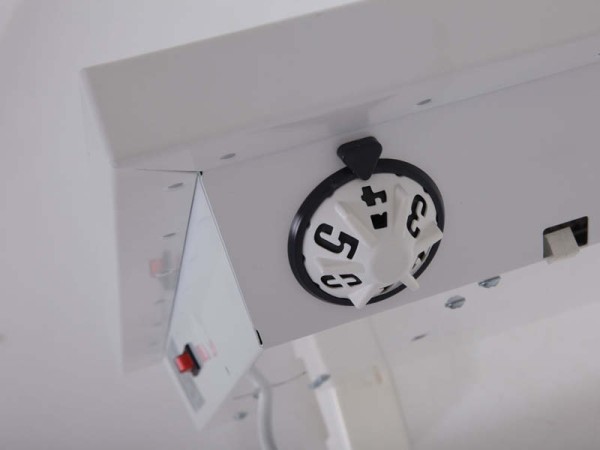

It can be easily switched between five temperature settings.

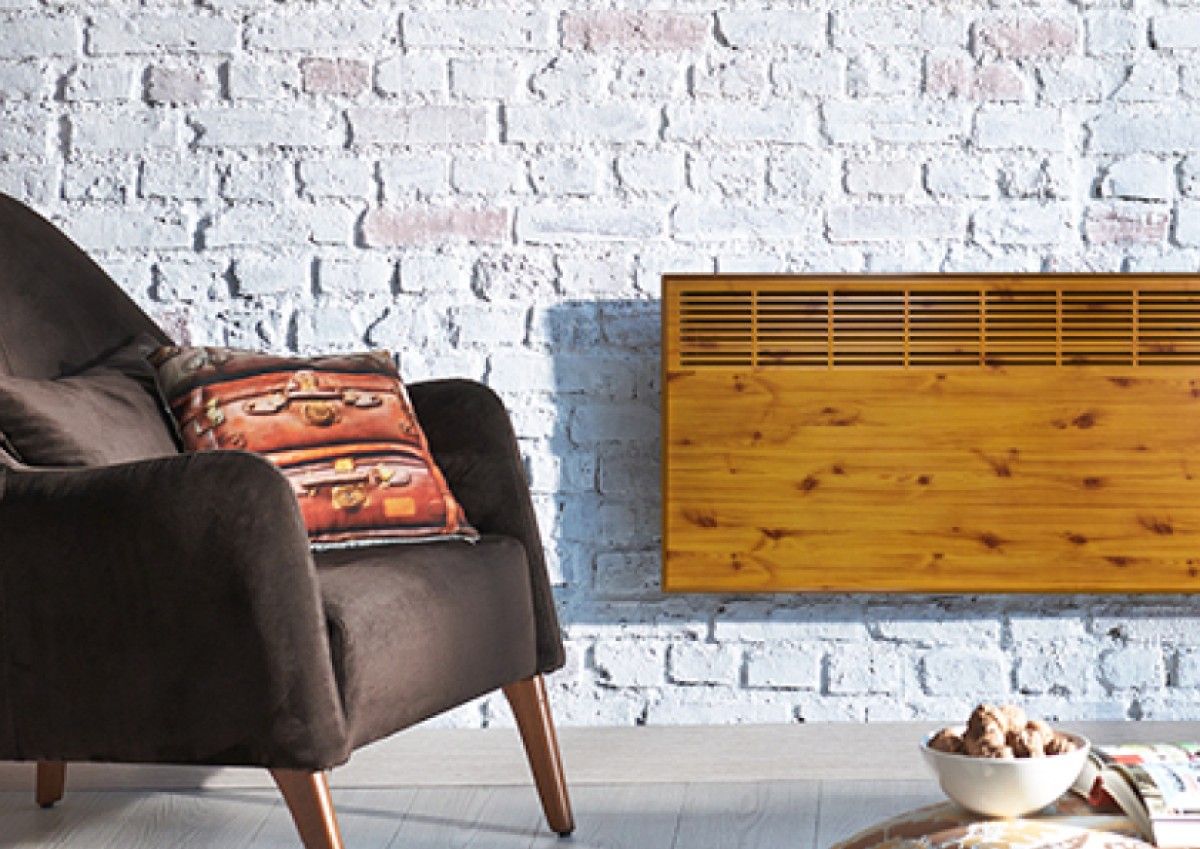

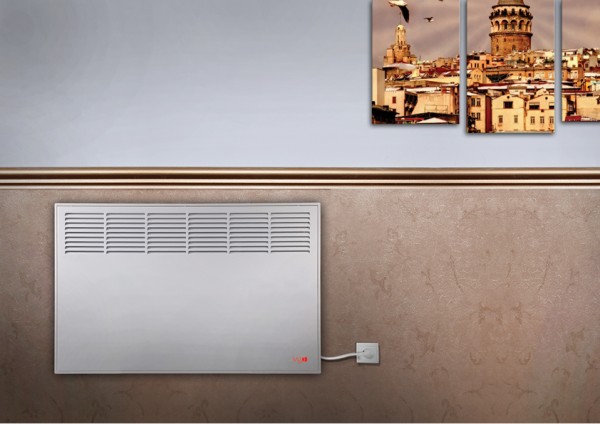

Decorative and Energy Efficient

Decorative and Energy Efficient

The heater 20% less energy than continuous-opera- tion heaters, offering energy efficiency and comfort. It easily blends into the room’s decoration thanks to its elegant design and a broad range of color and texture options.

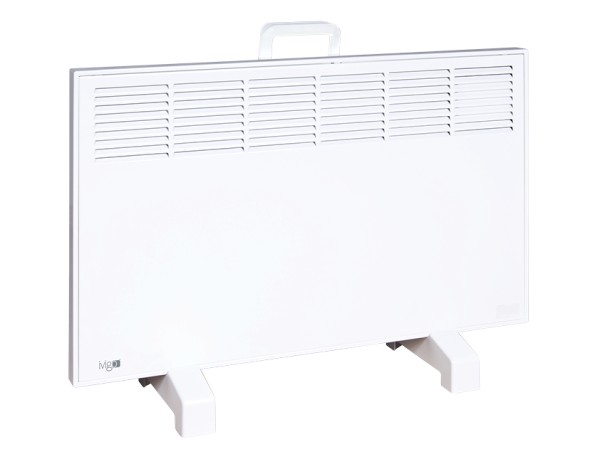

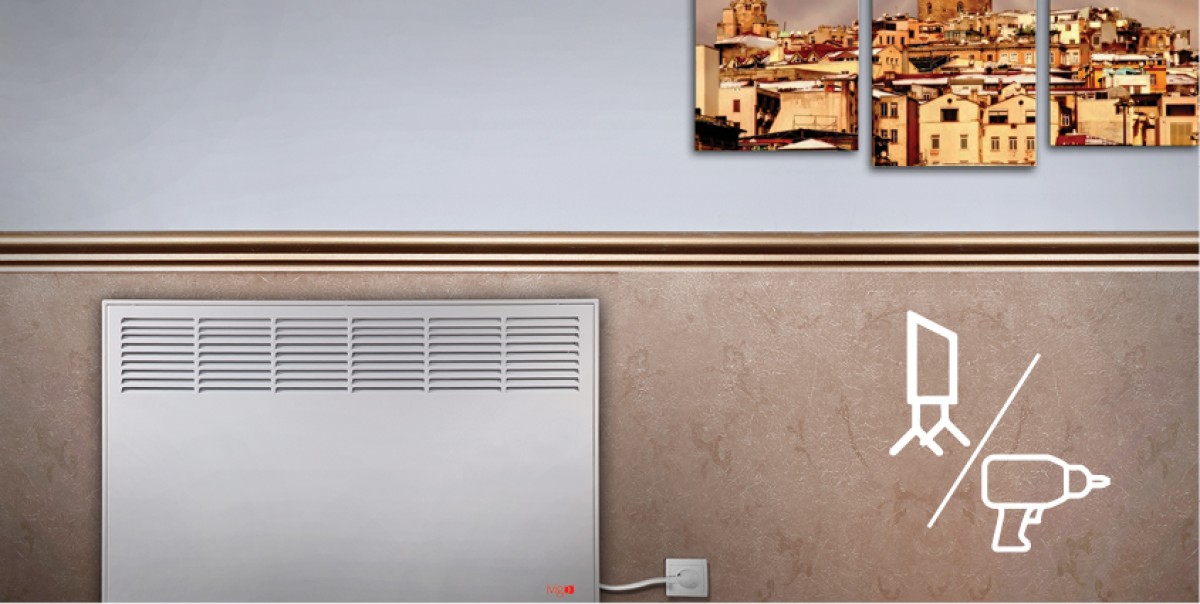

Wall Mount or Floor Stand Option

Wall Mount or Floor Stand Option

It can be either used free-standing or mounted to a wall using the set of plastic legs and wall mounts included in the package.

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

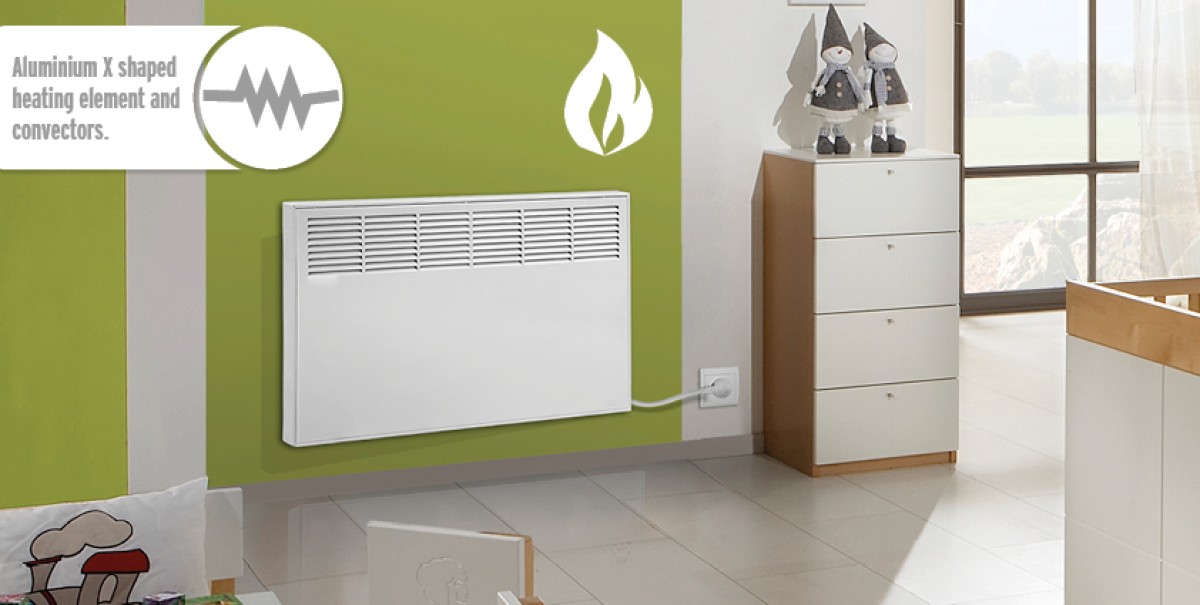

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Manual Panel Convectors

Type

EPK 4550M05

EPK 4550M07

EPK 4570M10

EPK 4570M15

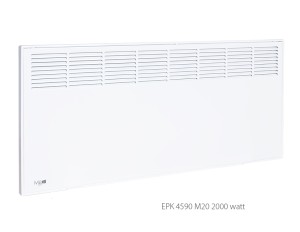

EPK 4590M20

EPK 4590M25

Height mm

450

450

450

450

450

450

Height mm

500

500

700

700

900

900

Depth mm

80

80

80

80

80

80

Weight kg

5.3

5.3

6.9

7.2

9

9.2

Electrical Power W

460-550

685-820

910-1085

1370-1630

1825-2150

2280-2720

Voltage V

220-240

220-240

220-240

220-240

220-240

220-240

Current A

2.17

3.26

4.34

6.52

8.69

10.86

Frequency Hz

50-60

50-60

50-60

50-60

50-60

50-60

Electronic Room

Temperature Control

-

-

-

-

-

-

Energy Saving Module

(Programmable)

-

-

-

-

-

-

On / Off Switch

Standard

Standard

Standard

Standard

Standard

Standard

Cord Length m

1.5

1.5

1.5

1.5

1.5

1.5

Protection Type

I

I

I

I

I

I

Thermostat Against Excessive Heat

Standard

Standard

Standard

Standard

Standard

Standard

Mechanical Thermostat Control

Standard

Standard

Standard

Standard

Standard

Standard

Rollover Protection

Switch

Switch

Switch

Switch

Switch

Switch

Energy Consumption Display

-

-

-

-

-

-

Room Temperature Display

-

-

-

-

-

-

Plastic Legs

Standard

Standard

Standard

Standard

Standard

Standard

Wall Mounting Kit

Standard

Standard

Standard

Standard

Standard

Standard

Color Choices

White

White

White

White

White,

Wood Style

White,

Wood Style



Standard : TS EN 60335-2-30
Material Structure : Cold Rolled Steel Iron. body: 0.80 mm, frame: 1.00 mm.
Surface  process : Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color : RAL9016 (Standard), Wood Style

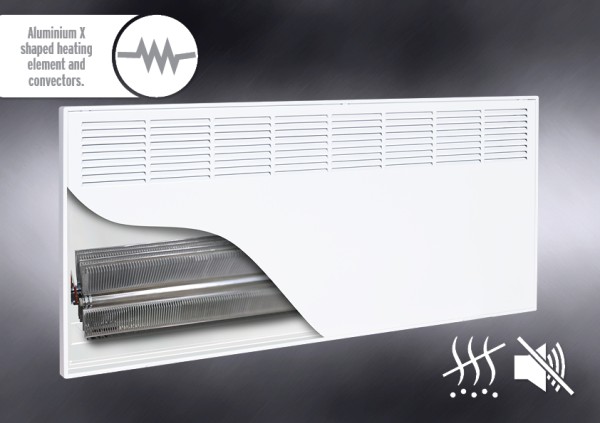

Heating Unite Group : Aluminium X shaped heating element and convectors
Quality Standard : CE, TS EN ISO 9001:2015
Heights : 450 mm
Lengths : 500-700-900 mm
Security : *Electric panel convector heaters has been adjusted for 220-240 V. Therefore use the convector only with the Alternative Voltage (AC) and sufficient current rated power outlets. *Use your electric panel convector heater with grounded plug socket. Our company will not be deemed responsible for the damages caused due to usage without the application of grounding. *Do not operate in areas where gasoline, paint or other flammable liquids are used or stored. *Do not immerse in liquid or allow liquid into the interior of the appliance, as this could create an electric shock hazard. *Do not operate appliance with wet hands always ensure that hands are dry before operating any switch on the product or touching the plug *Protect the heating cable of your electric panel convector heater against potential tension possibilities. Do not unplug by pulling on cord.
Guarantee : 3 Years



Basic Electric Panel Convector Heater Model Selection
Model Recommended Heater Power (watt) Room Area (m2)
EPK 4550 M05 500 3-6

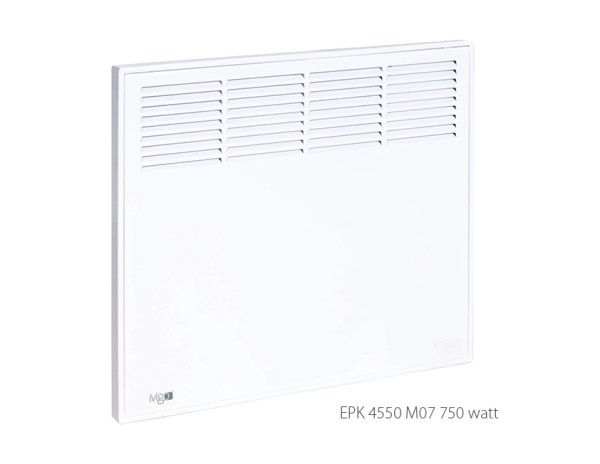

EPK 4550 M07 750 4-9
EPK 4570 M10 1000 6-12

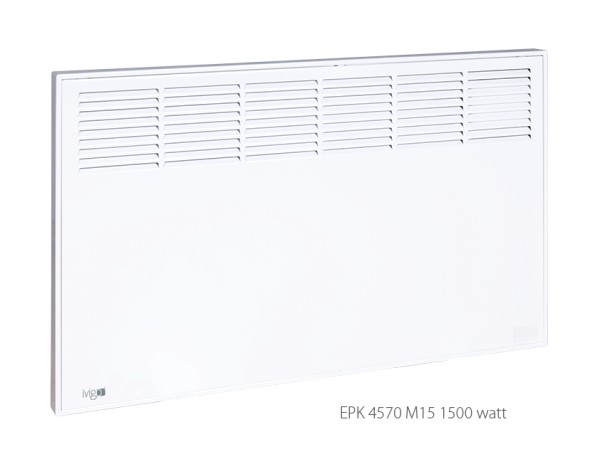

EPK 4570 M15 1500 9-17
EPK 4590 M20 2000 12-24

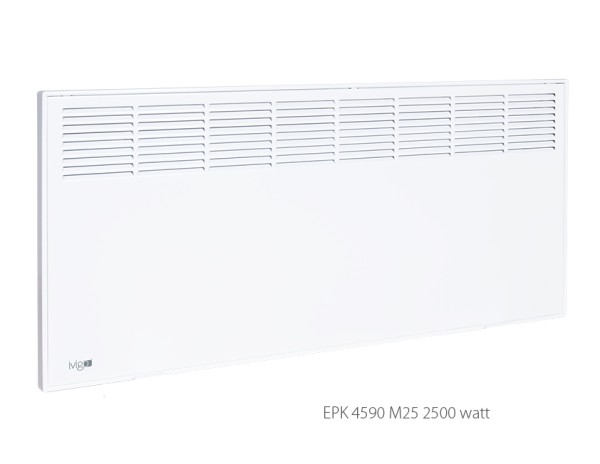

EPK 4590 M25 2500 14-28
Manual Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:
- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period,
- If the maximum repair period is exceeded,
- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible.

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
