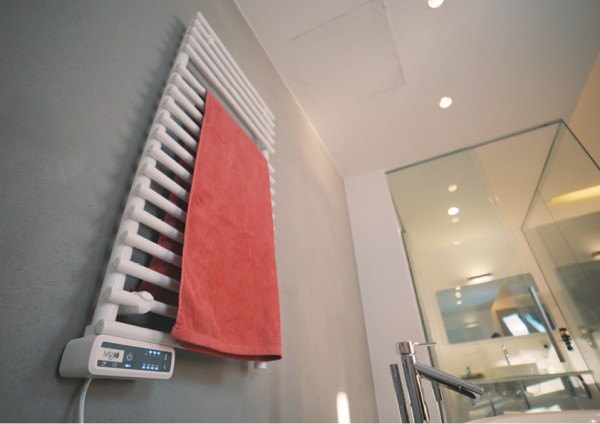

Ivigo Professional Towel Warmer

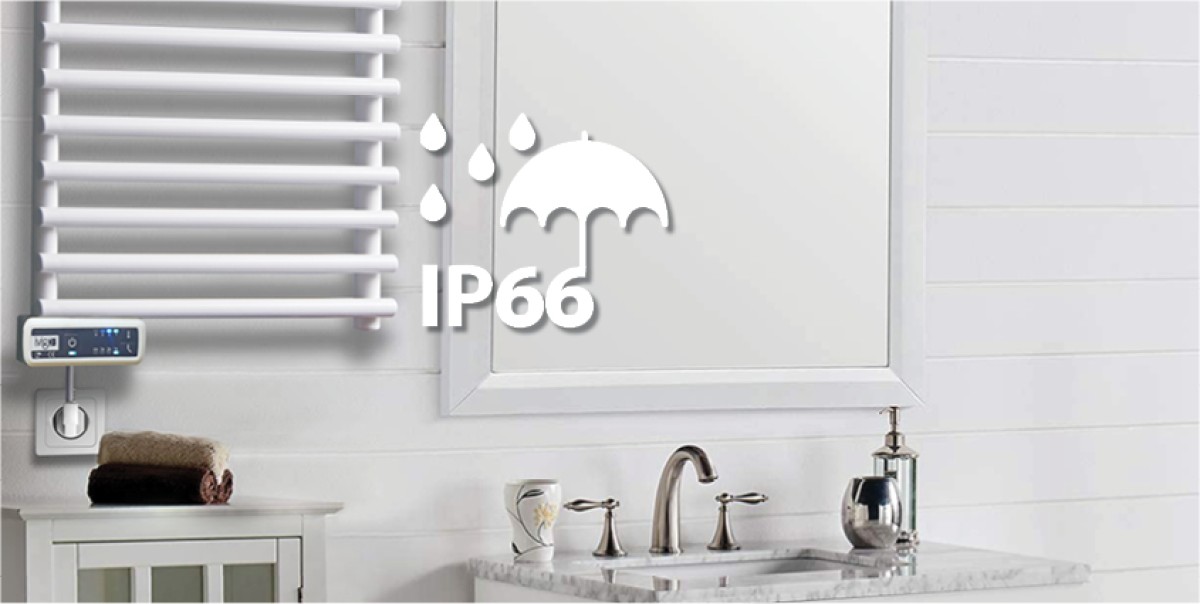

IP66-level Protection against Water, Moisture and Dust Ingress

IP66-level Protection against Water, Moisture and Dust Ingress

The electrical İvigo Professional Towel Warmers can be used safely in the bathroom or kitchen thanks to their resistance to water, moisture and dust ingress.

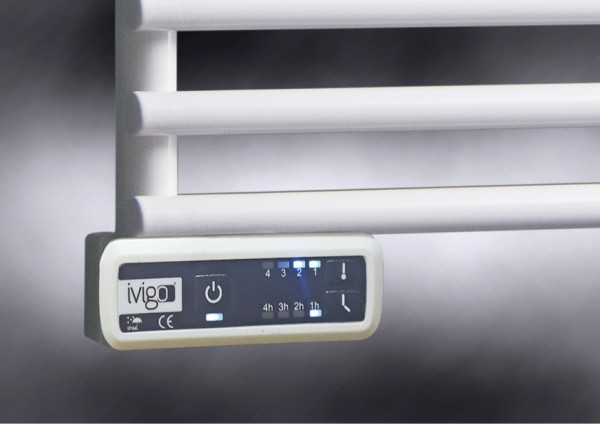

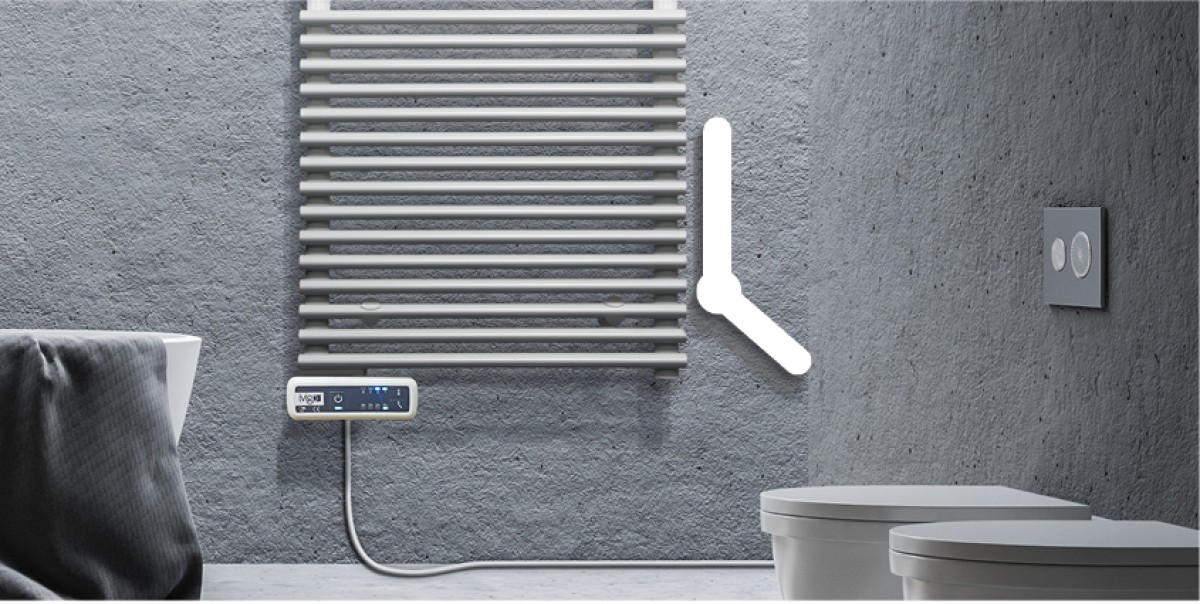

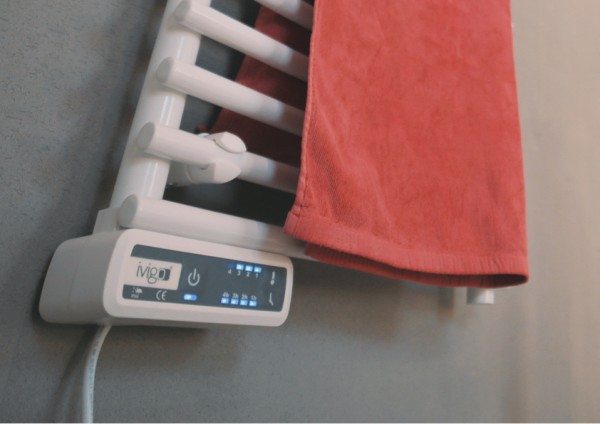

Built-in Timer to Prevent Leaving the Heater On

Built-in Timer to Prevent Leaving the Heater On

The timer can be used to set a runtime for the heater up to four hours maximum, with one hour increments. The device will turn off auto- matically after the set time.

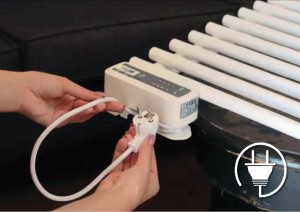

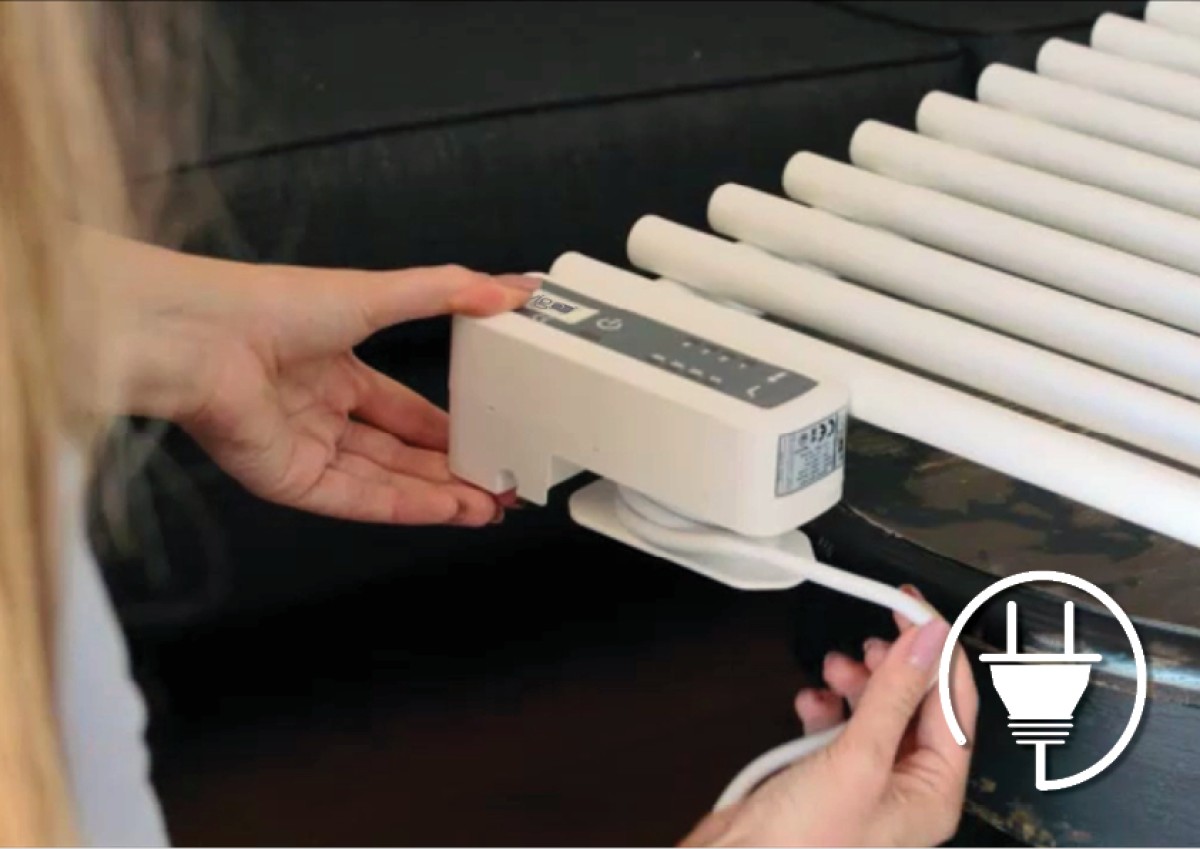

Cable Winder

Cable Winder

The cord organizer located behind the elec- tronic control panel can be used to store the excess length of cord for a tidier look.

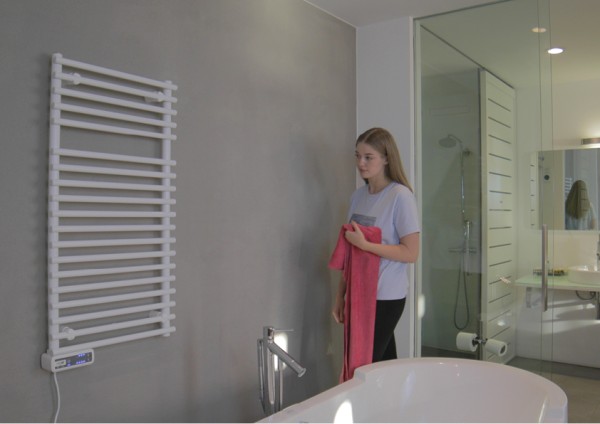

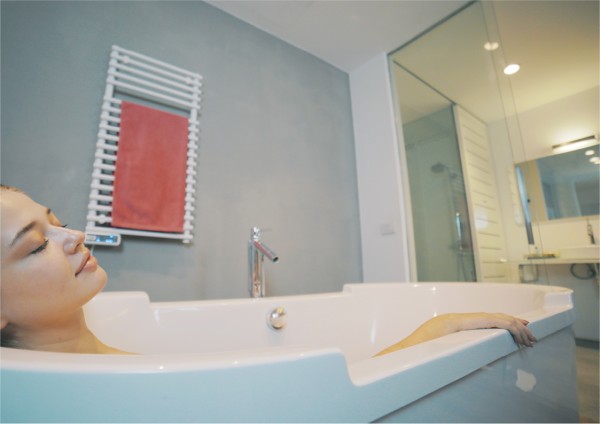

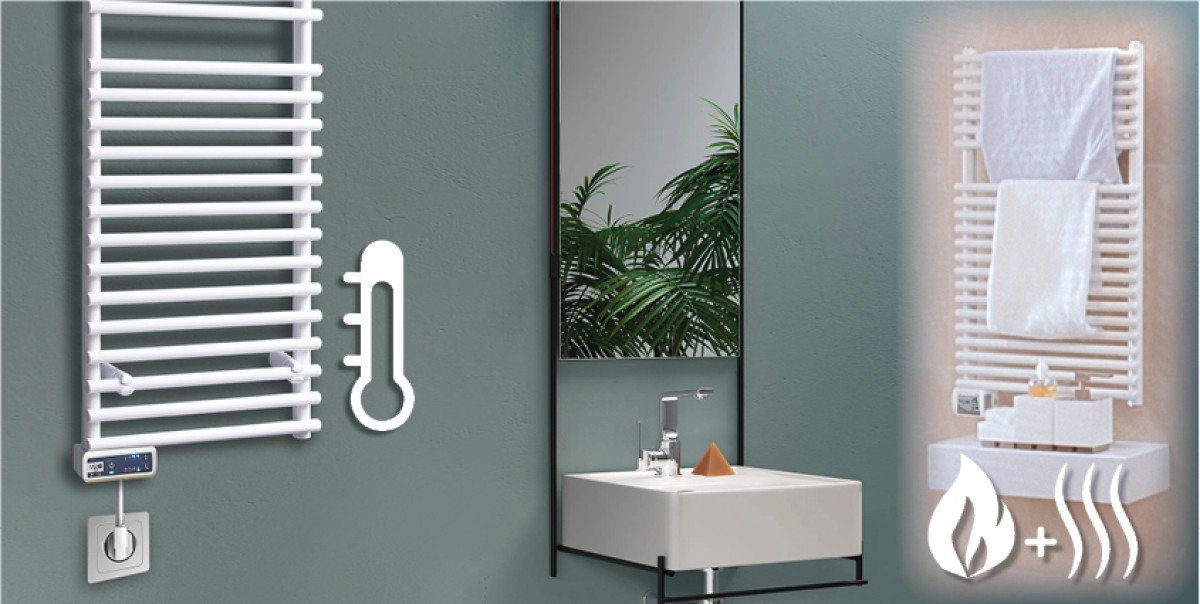

Hygienic Towels, Warm & Cozy Bathrooms

Hygienic Towels, Warm & Cozy Bathrooms

Ivigo Professional Tower Warmer can be easily set to one of four temperature levels, offering you the com- fort of hygienic towels and a warm and cozy bathroom.

Professional Towel Warmer Model Selection

Professional Towel Warmer | Technical Specifications

Type

Width (mm)

Length(mm)

Voltage(Volt)

Current(Amper)

Frequncy(Hz)

Power(Watt)

Weight(kg)

Color Choices

EHR 5012P*

500

650

220-240

1.25

50-60

275

8

White

EHR 5015P*

500

800

220-240

1.59

50-60

350

9.8

White

EHR 5019P*

500

1000

220-240

2.04

50-60

450

12

White

EHR 5023P*

500

1250

220-240

2.72

50-60

600

15

White

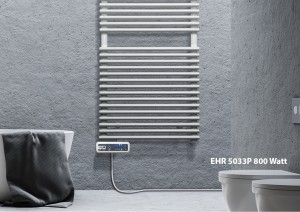

EHR 5033P*

500

1274

220-240

3.63

50-60

800

19

White

*Electrostatic powder paint

Standard : EN 60335-2-43
Material Structure : St34-2 / St37.
Surface  process : Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color : Electrostatic powder paint, White RAL 9016
Heating Unite Group : Deionized Water + Antifreeze
Quality Standard : CE, TUV,  EN ISO 9001:2015
Heights : 650 – 800 – 1000 - 1250 - 1274 mm
Length : 500 mm
Security : The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee : 3 Years



Professional Towel Warmer Model Selection
Model Recommended Heater Power (watt) Room Area(m²)

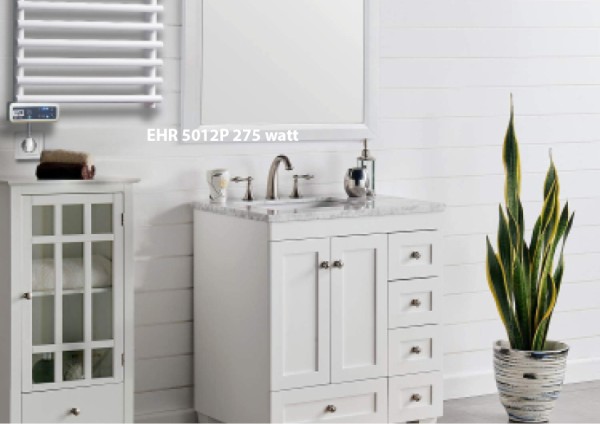

EHR 5012P 275 2-3
EHR 5015P 350 2-4
EHR 5015P 350 2-4
EHR 5019P 450 3-5

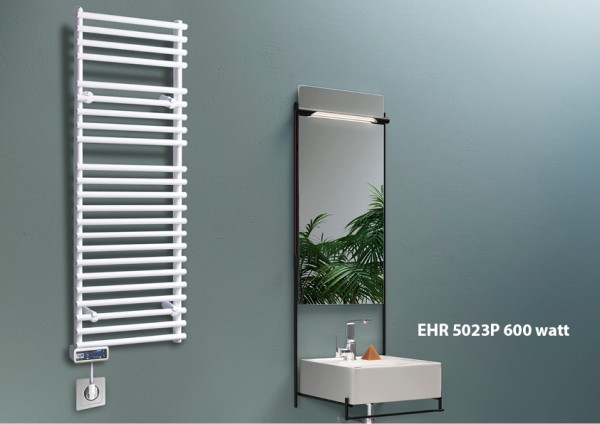

EHR 5023P 600 4-7
EHR 5033P 800 5-10

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 275-1500 Watt products; 3x1.0 mm2

Easing Installation

The total cost of a heating system includes the heater plus the cost of installation. Installation costs are virtually non-existent, since most people can install these heaters in less than twenty minutes using the supplied installation kit. Installation kit included in packaging.

Practical Mounting Kit

The package of İvigo Towel Warmers con- tains an installation kit consisting of an in- stallation manual, screws and screw anchors, enabling easy installation.

Professional Towel Warmer | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.



EN 60335-2-43
