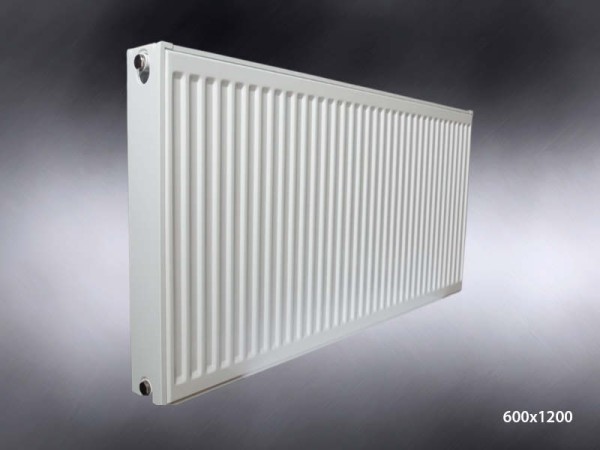

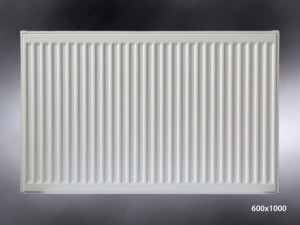

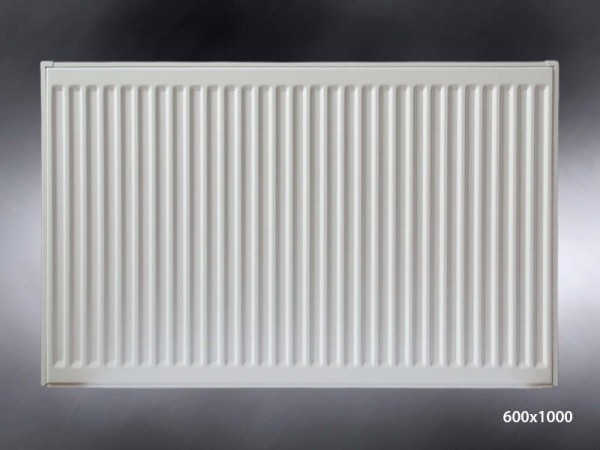

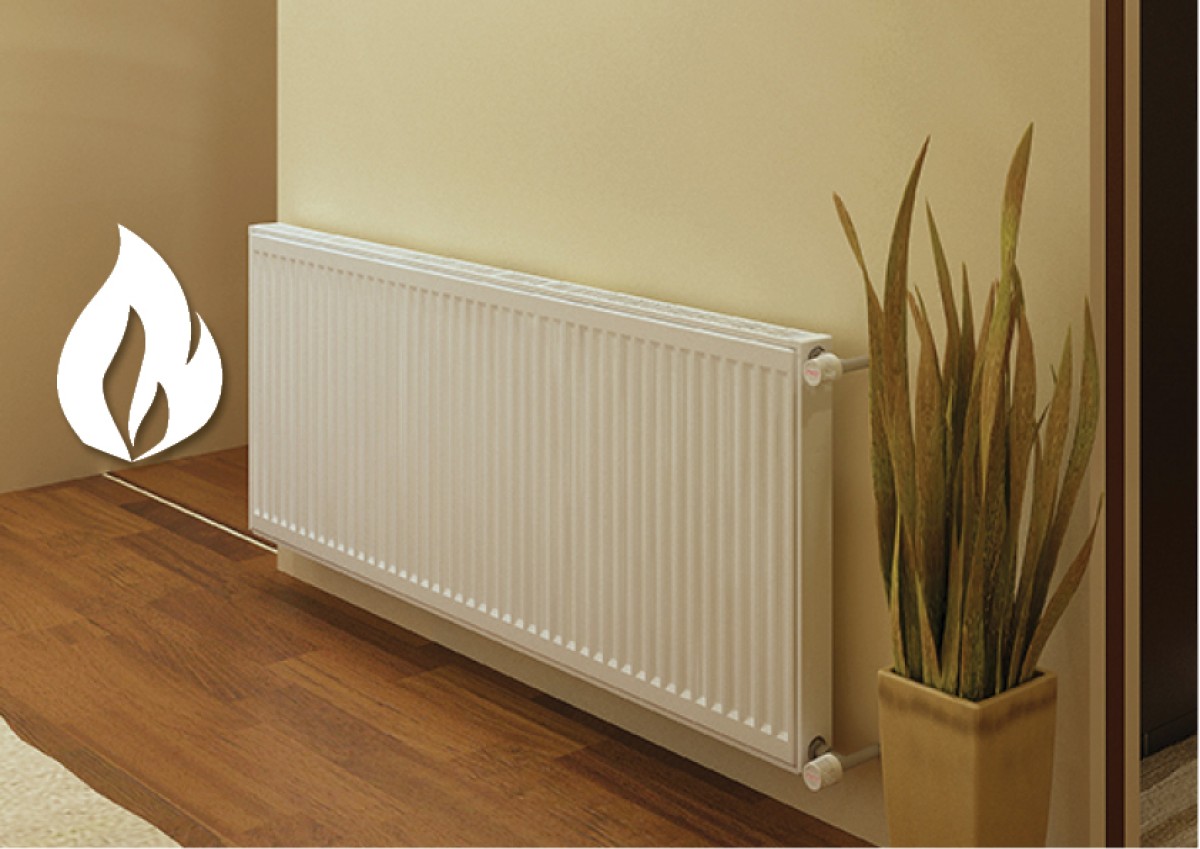

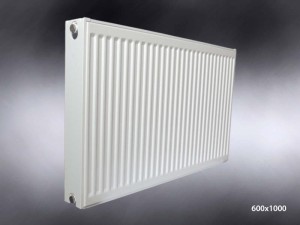

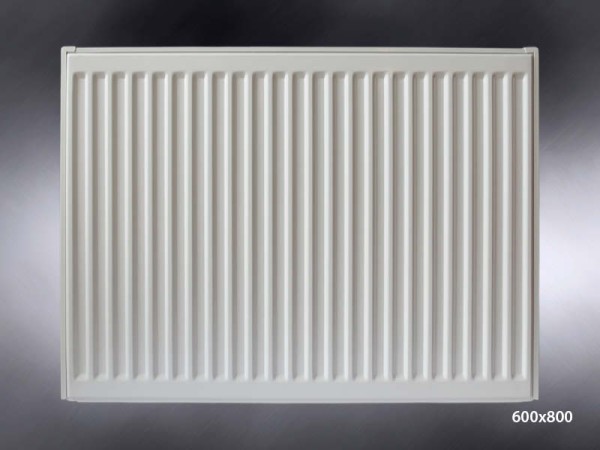

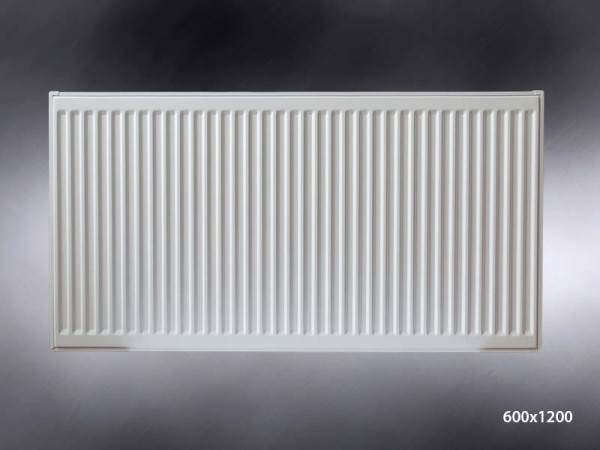

Mastaş Compact and Compact Ventil Panel Radiators
High Heat Efficiency
Mastaş is a perfect solution for you to achieve the highest heat efficiency from a panel radiator.

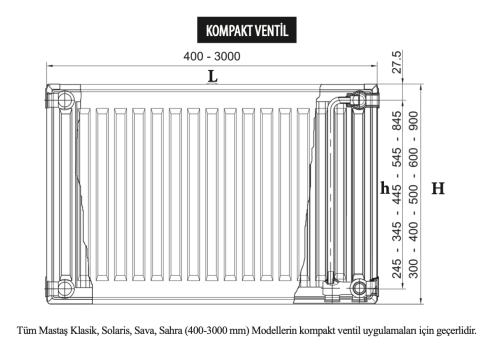

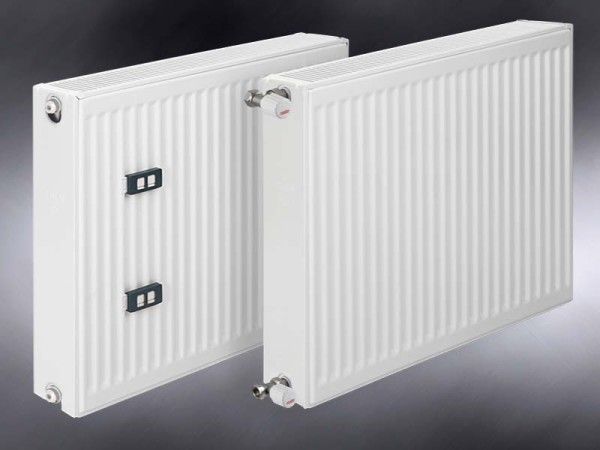

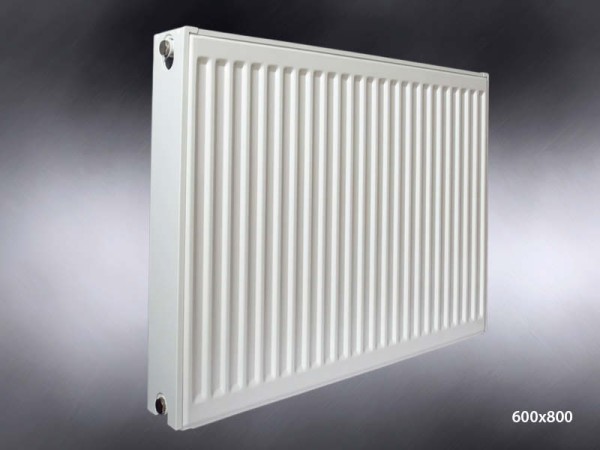

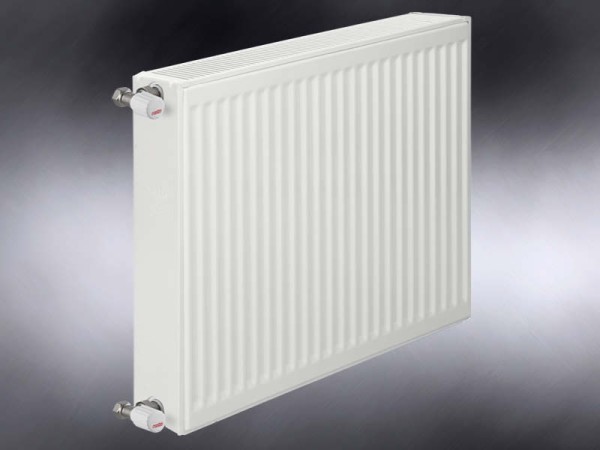

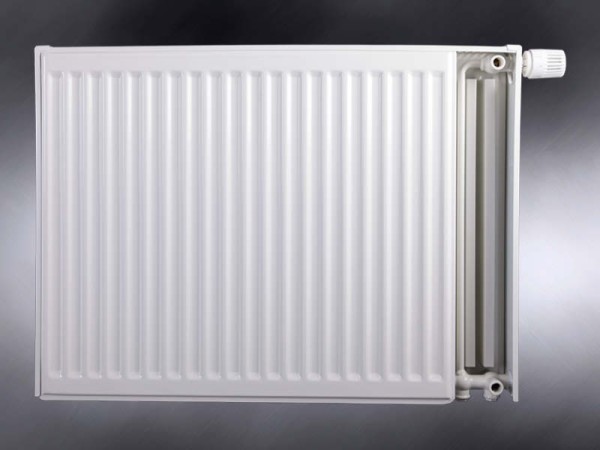

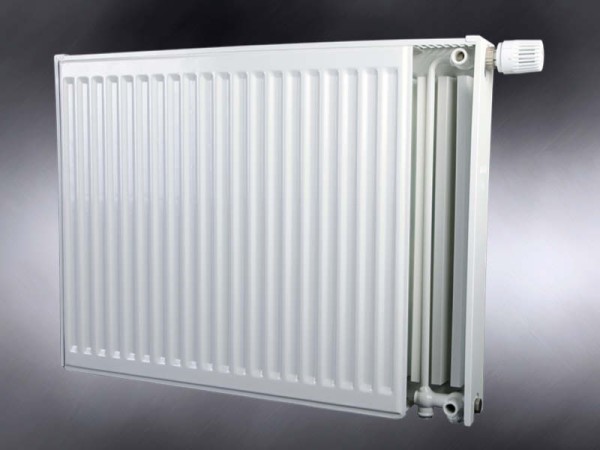

Compact Ventil Model
Mastaş is the perfect solution when maximum heat output is needed from a steel panel radiator.
Superior Quality Performance
Mastaş radiators provide you with a wide range of design options and a superior quality performance.
| Compact and Compact Ventil Panel Radiators | Technical Specifications | ||
| Standard | : | TS EN 442-2 |
| Material Structure | : | Cold Rolled Steel |
| Surface Treatment | : | The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200°C). |
| Color | : |

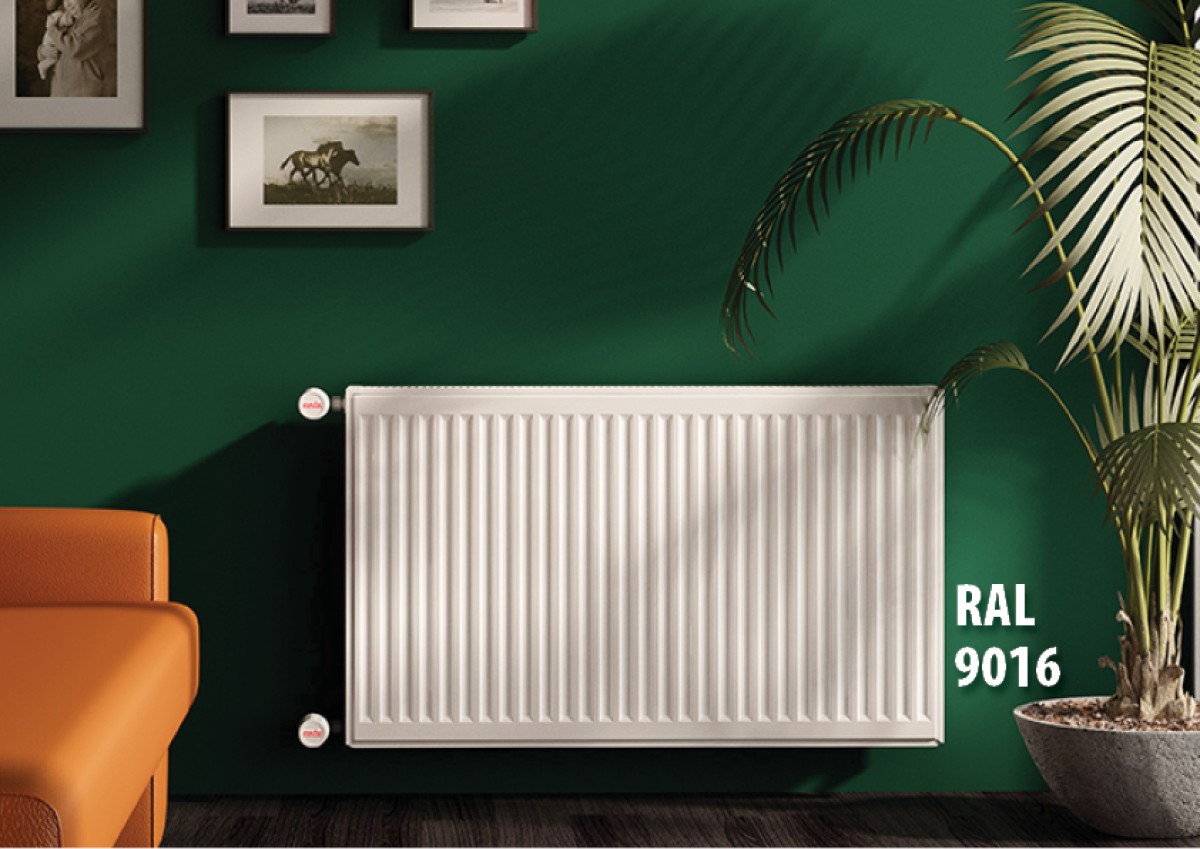

RAL 9016 (Standard color) Alternative Colors:RAL 9016 White Matte Beige Matte (YW364F), L. Brown Matte (YW364F) ve Black Matte (RAL 9005) The minimum order quantity is 10 mt. or 20 for alternative color products. The minimum order quantity is 350 mt. for the other colors than. |
| Working Pressure | : | 9 Bar (10 bar can be produced as requested) |
| Quality Standard | : | TS EN ISO 9001 2000 |

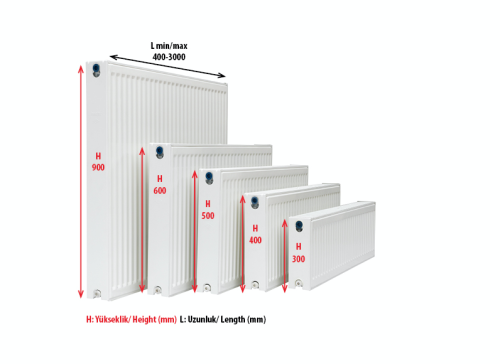

| Heights | : | 300-400-500-600-900 mm |
| Lengths | : | 400 to 3000 mm |
| Water Temperature | : | 0°C - 120°C |
| PH Value Montage |
: |
0°C – 120°C Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be. |
| Guarantee | : | 10 Years |
| Brand | : | MASTAŞ |

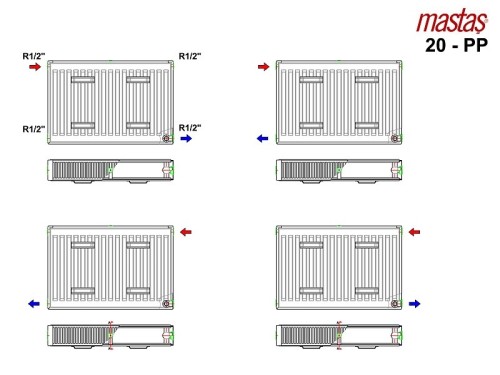

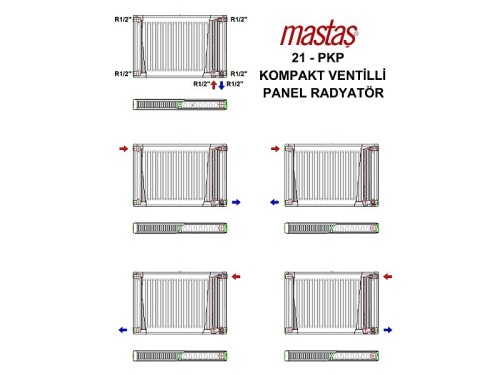

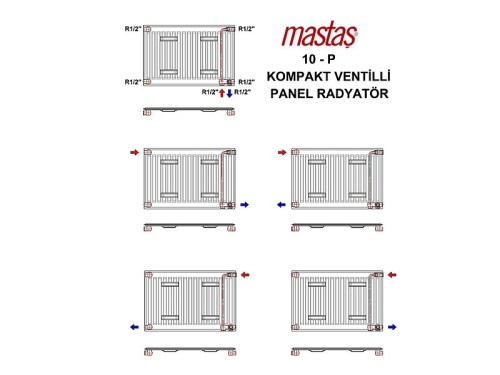

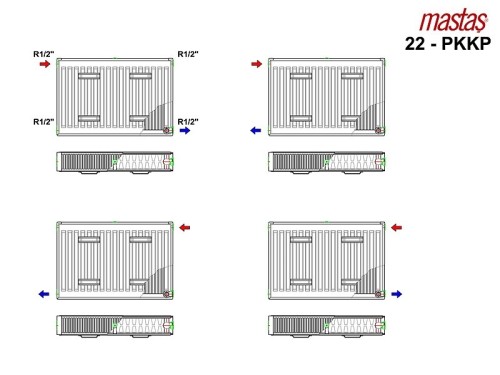

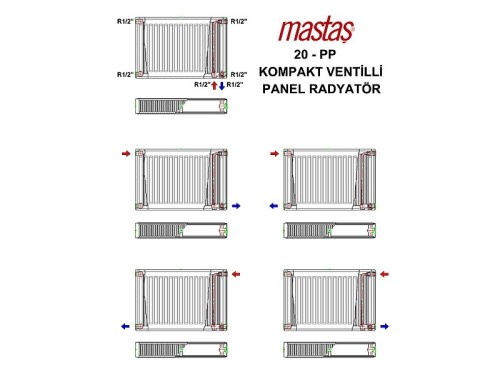

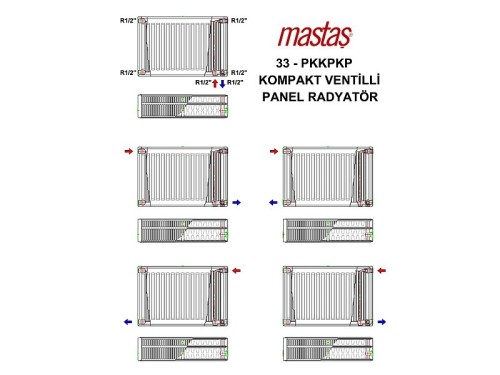

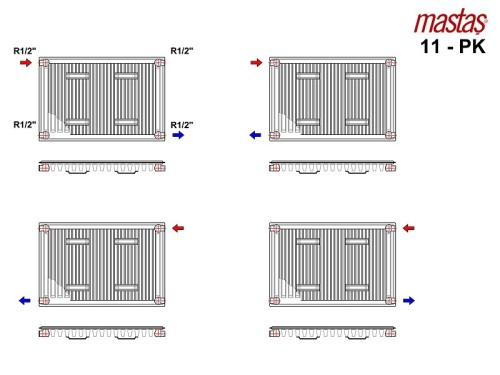

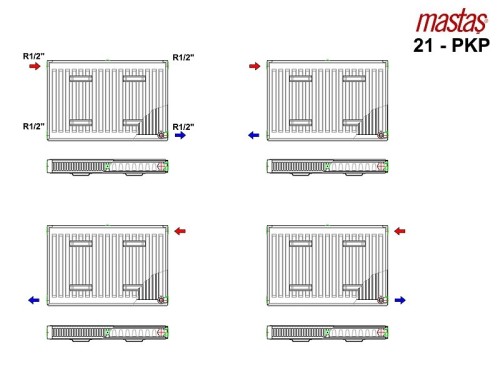

Connection

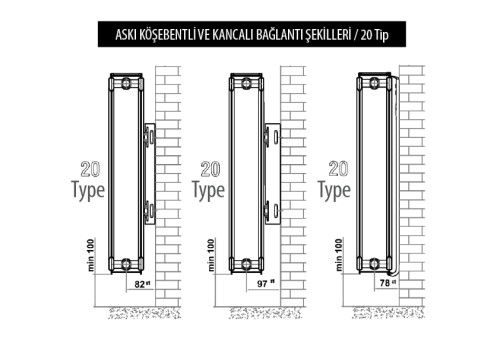

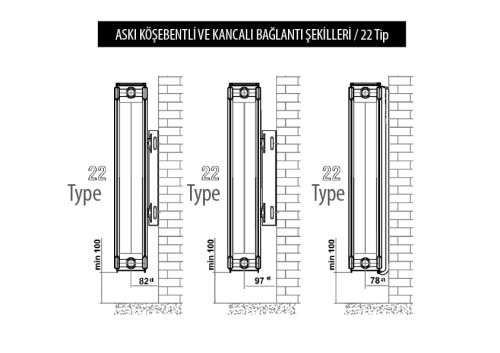

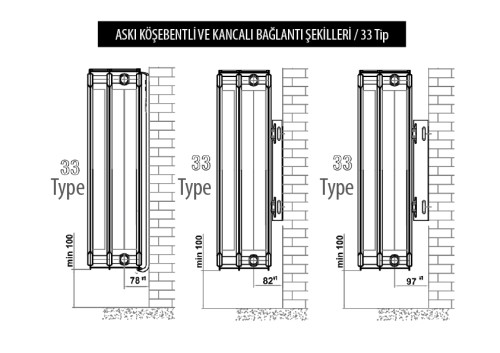

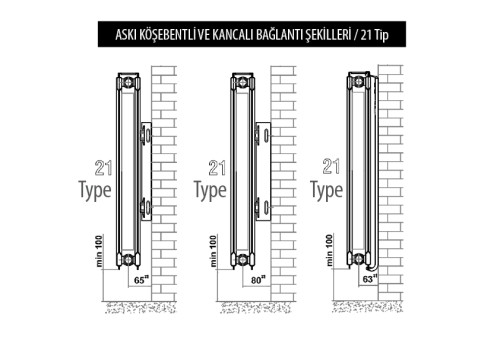

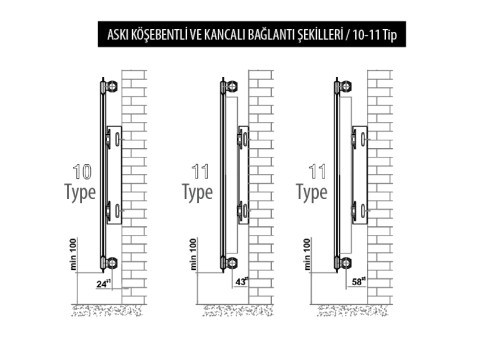

Mounting

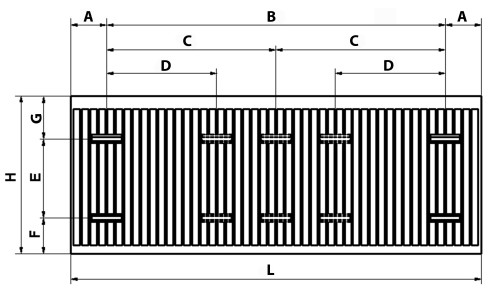

| Compact and Compact Ventil Panel Radiators | Connection and Mounting | ||||

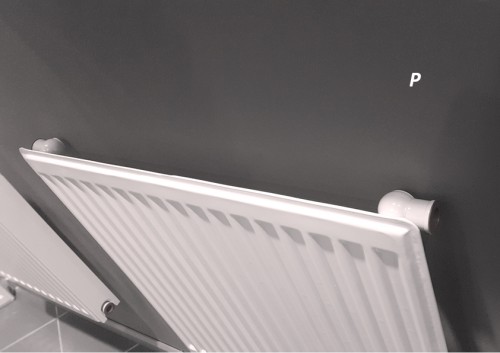

| Compact and Compact Ventil Panel Radiators | Connection and Mounting | P - PK - PP - PKP - PKKP - PKKPKP | |||
|
|
A (mm) |
B (mm) |
C (mm) |
D (mm) |
|
400 |
102 |
196 |
- |
- |
|
500 |
136 |
228 |
- |
- |
|
600 |
169 |
262 |
- |
- |
|
700 |
169 |
362 |
- |
- |
|
800 |
169 |
462 |
- |
- |
|
900 |
169 |
562 |
- |
- |
|
1000 |
169 |
662 |
- |
- |
|
1100 |
169 |
762 |
50-60 |
50-60 |
|
1200 |
169 |
862 |
- |
- |
|
1300 |
169 |
962 |
- |
- |
|
1400 |
169 |
1062 |
- |
- |
|
1500 |
169 |
- |
581 |
- |
|
1600 |
169 |
- |
631 |
- |
|
1700 |
169 |
- |
681 |
- |
|
1800 |
169 |
- |
731 |
- |
|
1900 |
169 |
- |
781 |
- |
|
2000 |
169 |
- |
831 |
- |
|
2100 |
169 |
- |
881 |
- |
|
2200 |
169 |
- |
931 |
- |
|
2300 |
169 |
- |
981 |
- |
|
2400 |
169 |
- |
- |
687 |
|
2500 |
169 |
- |
- |
720 |
|
2600 |
169 |
- |
- |
754 |
|
2700 |
169 |
- |
- |
787 |
|
2800 |
169 |
- |
- |
820 |
|
2900 |
169 |
- |
- |
854 |
|
3000 |
169 |
- |
- |
887 |
| Radiator Height H (mm) | PK | |||
|
|
E (mm) |
F (mm) |
G (mm) |
|
|
300 |
120 |
90 |
90 |
|
|
400 |
120 |
160 |
120 |
|
|
500 |
120 |
200 |
180 |
|
|
600 |
220 |
190 |
190 |
|
|
900 |
520 |
190 |
190 |
|
| Quantity of Mounting Brackets | |
| Quantity of Mounting Brackets | Piece |
|
L=400-500-600-...-1400 |
4 |
|
L=1500-1600-1700-...-2300 |
6 |
|
L=2400-250-2600-...-3000 |
8 |
| Radiator Height H (mm) | PKKP - PKP - PP | |||
|
|
E (mm) |
F (mm) |
G (mm) |
|
|
300 |
120 |
90 |
90 |
|
|
400 |
220 |
90 |
90 |
|
|
500 |
220 |
140 |
140 |
|
|
600 |
220 |
190 |
190 |
|
|
900 |
520 |
190 |
190 |
|
|

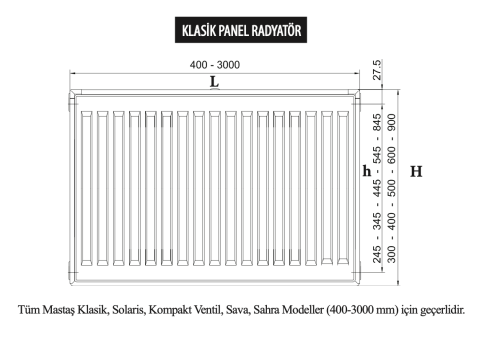

Model |
Type |
Height(H) |
Dimensions (mm) |
Weight Kg/m |
Water Volume Lt/m |
Heat Power |
|||||
|
Axis Distance (h) |
Depth |
Length (min-max (L) |
T= 60 °C 90-70 / 20°C |
T= 50 °C 75-65 / 20°C |
|||||||

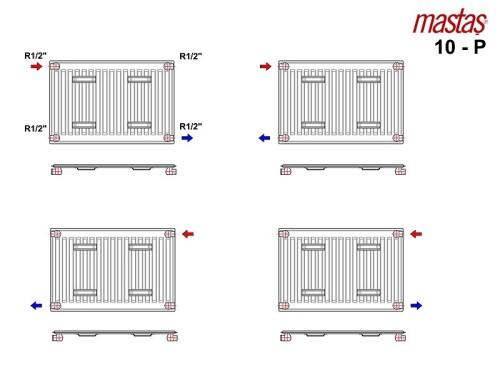

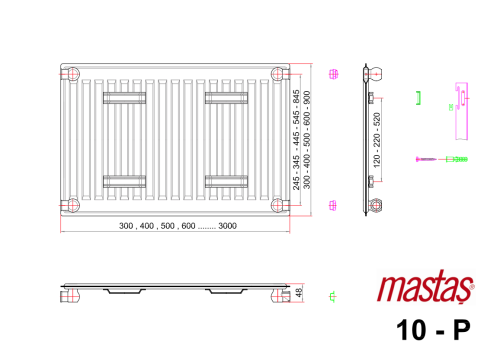

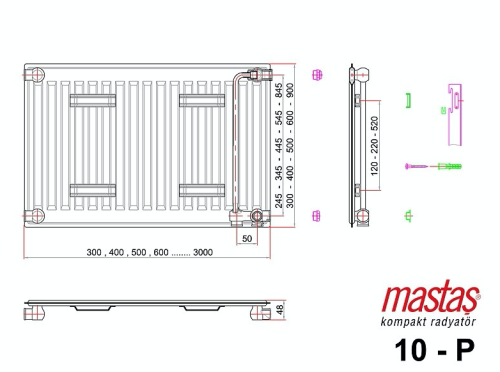

| Compact and Compact Ventil | 10 P | 300 400 500 600 900 |
245 345 445 545 845 |
46 46 46 46 46 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
5.6 8.1 10.6 12.0 17.4 |
1.8 2.1 2.4 2.7 4.9 |
kcal/h 364 460 553 641 895 Watt 423 535 643 746 1041 |
kcal/h 286 362 435 505 703 Watt 333 421 506 587 816 |
||

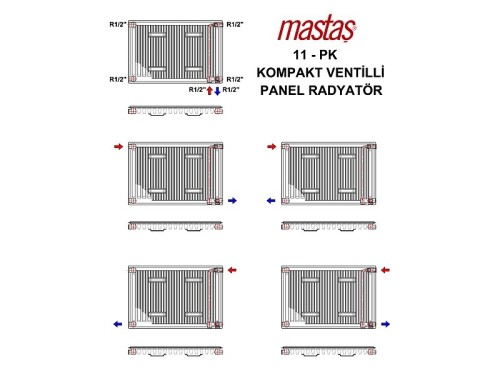

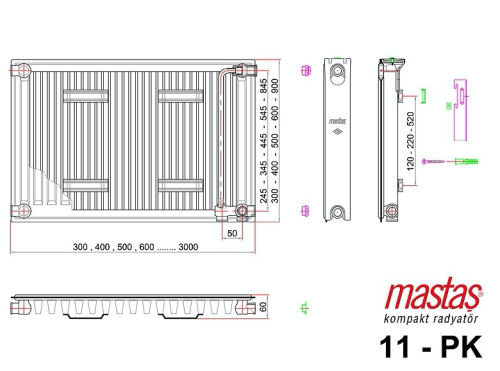

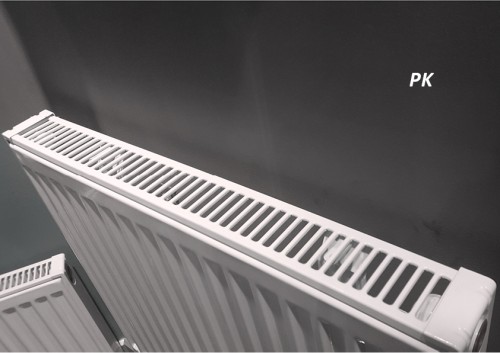

| Compact and Compact Ventil | 11 PK | 300 400 500 600 900 |
245 345 445 545 845 |
46 46 46 46 46 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
8.6 11.0 13.6 15.9 24.0 |
1.8 2.1 2.4 2.7 4.9 |
kcal/h 531 686 837 985 1412 Watt 616 798 974 1145 1642 |
kcal/h 419 515 660 776 1113 Watt 487 629 767 903 1294 |
||

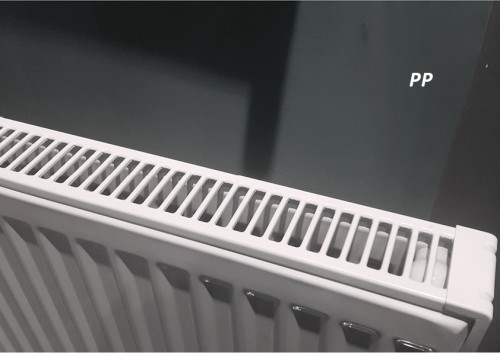

| Compact and Compact Ventil | 20 PP | 300 400 500 600 900 |
245 345 445 545 845 |
67 67 67 67 67 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
10.6 16.2 20.6 23.7 34.8 |
3.6 4.2 4.8 5.4 9.8 |
kcal/h 592 750 899 1045 1457 Watt 689 872 1046 1215 1694 |
kcal/h 466 590 708 822 1137 Watt 542 686 823 956 1322 |
||

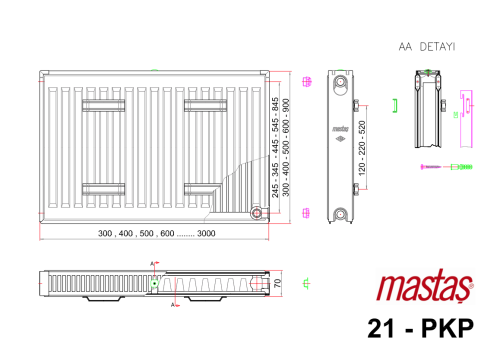

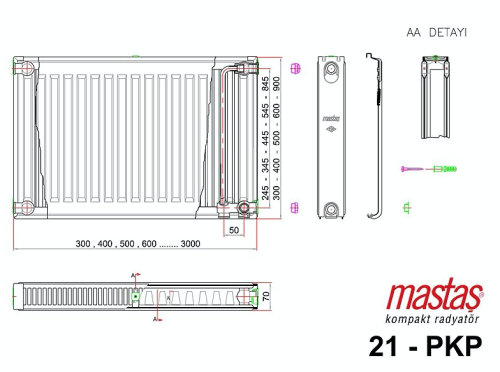

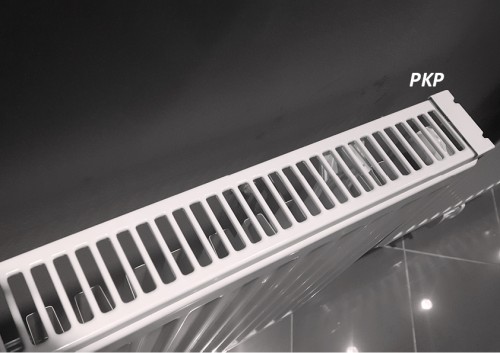

| Compact and Compact Ventil | 21 PKP | 300 400 500 600 900 |
245 345 445 545 845 |
67 67 67 67 67 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
13.6 16.3 23.8 27.8 41.3 |
3.6 4.2 4.8 5.4 9.8 |
kcal/h 782 1001 1200 1393 1937 Watt 921 1164 1396 1820 2253 |
kcal/h 623 788 944 1095 1524 Watt 724 918 1098 1274 1773 |
||

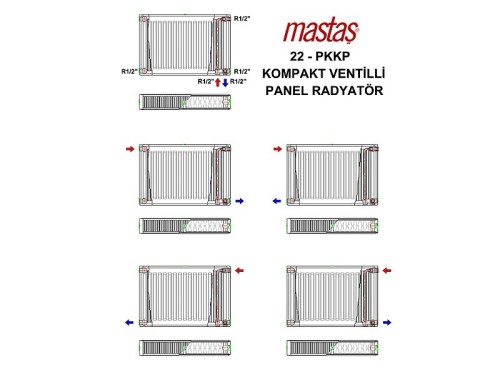

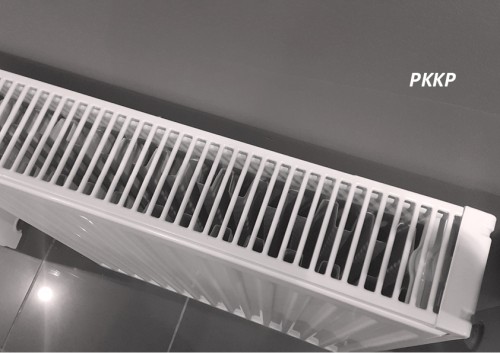

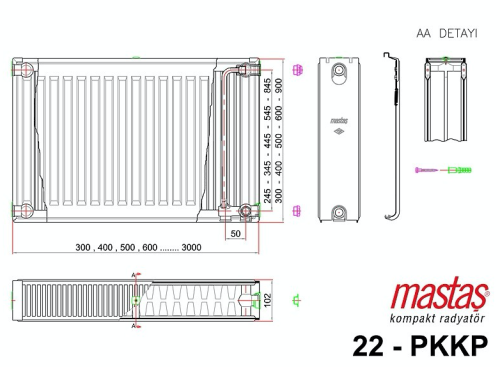

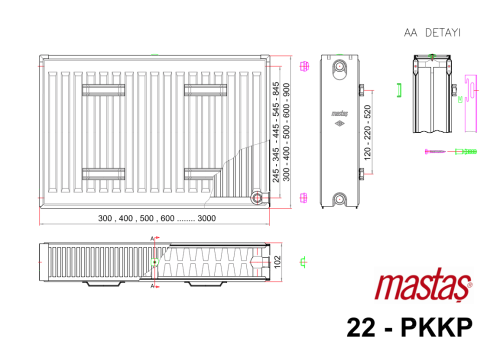

| Compact and Compact Ventil | 22 PKKP | 300 400 500 600 900 |
245 345 445 545 845 |
102 102 102 102 102 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
16.5 21.3 26.9 31.6 47.7 |
3.6 4.2 4.8 5.4 9.8 |
kcal/h 1034 1306 1570 1824 2542 Watt 1202 1521 1826 2121 2956 |
kcal/h 813 1026 1235 1434 1999 Watt 945 1195 1436 1668 2325 |
||

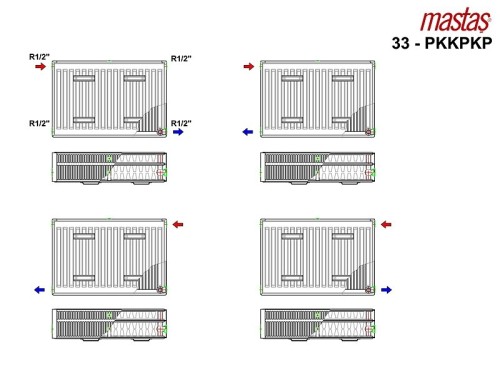

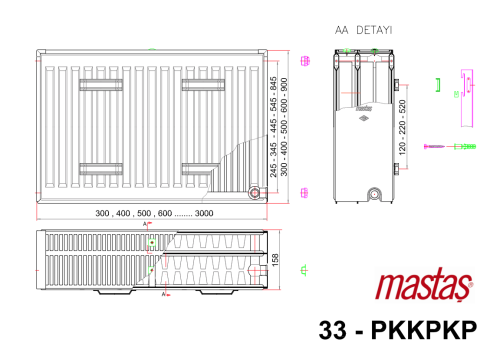

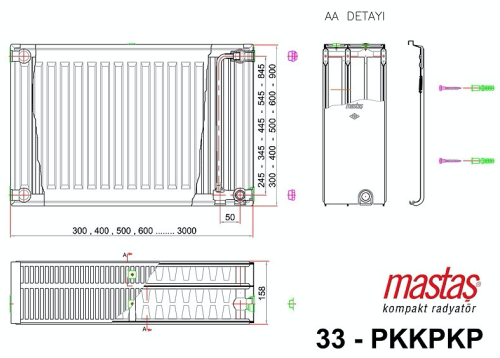

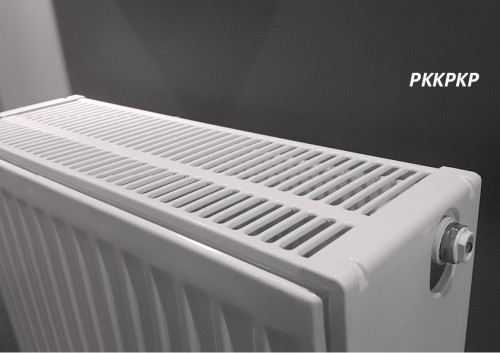

| Compact and Compact Ventil | 33 PKKPKP | 300 400 500 600 900 |
245 345 445 545 845 |
160 160 160 160 160 |
400-3000 400-3000 400-3000 400-3000 400-3000 |
25.2 32.7 39.8 46.7 70.6 |
5.4 6.3 7.2 8.1 14.7 |
kcal/h 1433 1807 2163 2505 3472 Watt 1667 2102 2515 2913 4036 |
kcal/h 1127 1421 1701 1969 2730 Watt 1311 1653 1978 2291 3175z |
||
Compact and Compact Ventil Panel Radiators | Guarantee
1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening.
