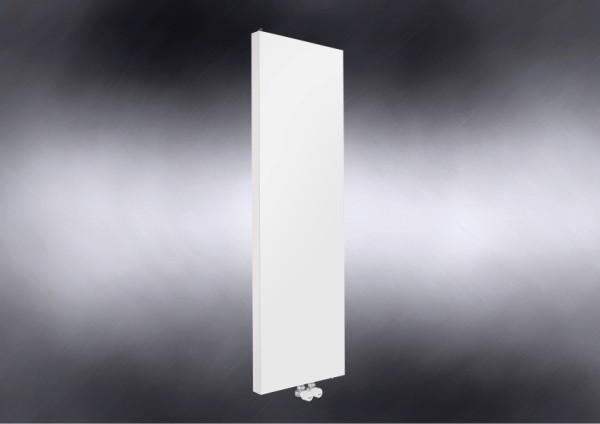

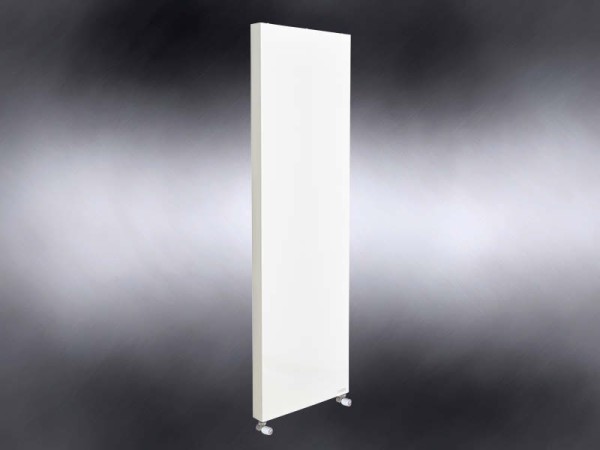

Distinctive with its plain, flat and sharp surfaces, Rodeo helps create warm environments adorned with its impressive look.

Hygienic

Hygienic

Aesthetic and hygienic as other members of the vertical panel family, thanks to its easy to clean body that does not collect dust on the inside.

Standard

:

TS EN 442

Material Structure

:

Cold Rolled Steel

Surface Treatment

:

The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200 °C).

Color

:

RAL 9016 (Standard color)  Alternative Colors: RAL 9016 White Matte, Beige Matte (YW364F), L. Brown Matte (YW364F) ve Black Matte (RAL 9005)

The minimum order quantity is 10 mt. or 20 pieces for alternative color products.

The minimum order quantity is 350 mt. for the other colors than

Working Pressure

:

9 Bar (10 bar can be produced as requested)

Quality Standard

:

TS EN ISO 9001 2015

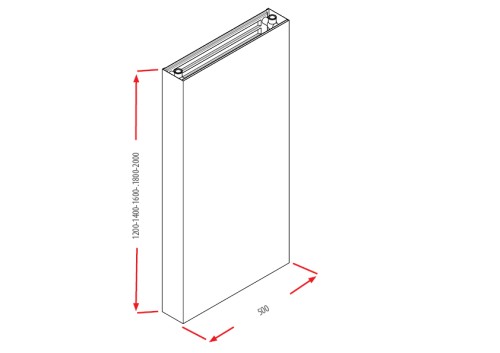

Heights

:

1200 - 1400 - 1600 - 1800 - 2000 mm

Width

:

500 mm

Water Temperature

:

0°C – 120°C

PH Value

:

Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be.

Montage

:

Connection Standard 2x1/2, Connection Central Inlet 4x1/2

Guarantee

:

10 Years (*Vertical panels are not suitable for use in moist areas.)

Brand

:

MASTAŞ

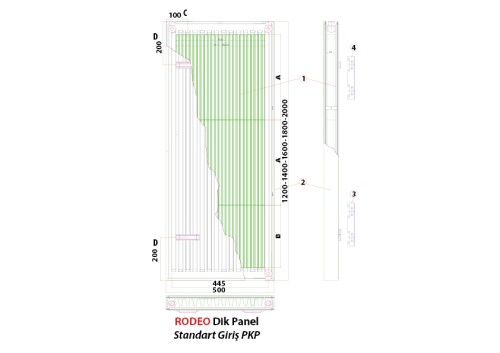

Radiator Height (mm)

Model PKP

C  (mm)

D (mm)

1220

100

200

1420

100

200

1620

100

200

1820

100

200

2020

100

200



Radiator Length (mm)

500



Color Choice

RAL 9016 White/ RAL 9016 White Matte* / RAL 9005 Black Matte*

* The minimum order quantity is 20 pieces for colour products.

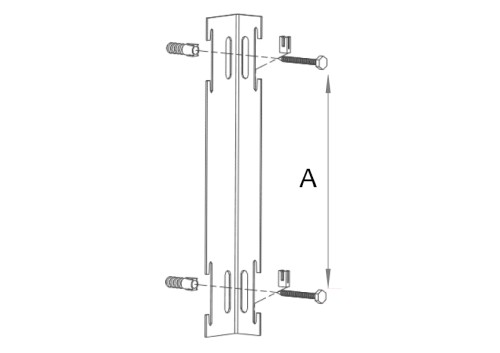

Panel Radiators include wall mounting brackets. (4 pcs) Each bracket is supplied with plastic inserts for noise suppression clip.

Model

Type

Dimensions (mm)

Weight (Kg)

Heat Power

Connection Standard / Central

Connection Standard / Central

Length (W)

Height (H)

  T= 50 °C

75-65 / 20 °C (Watt)

  T= 60 °C

90-70/ 20 °C (Watt)

kcal/h

Watt

kcal/h

Watt

RODEO*

21 PKP

500

1200

1400

1600

1800

2000

32,89

38,12

43,89

49,12

54,36

883

1031

1178

1325

1472

1027

1199

1370

1541

1712

1107

1291

1476

1660

1845

1287

1502

1716

1931

2146

*Vertical panels are not suitable for use in moist areas.

Rodeo Decorative Radiators | Guarantee


1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening

Note: Vertical panels are not suitable for use in moist areas.
