Ivigo ЭЛЕКТРИЧЕСКИЙ ПАНЕЛЬНЫЙ КОНВЕКТОР / ПРОФЕССИОНАЛЬНЫЙ WIFI

All smart features in one heater

All smart features in one heater

All smart features in one heater and your heater is at your fingertips wherever you are...

Install the app on your phone and start experiencing this comfort right now.

Install the app

Install the app

Comfort and economy combined, all settings on your phone...

Control the Power of Your Heater

Control the Power of Your Heater

With this feature, your heater works at the wattage you set.

IPX4

IPX4

You can also use your convector heater in humid areas.

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

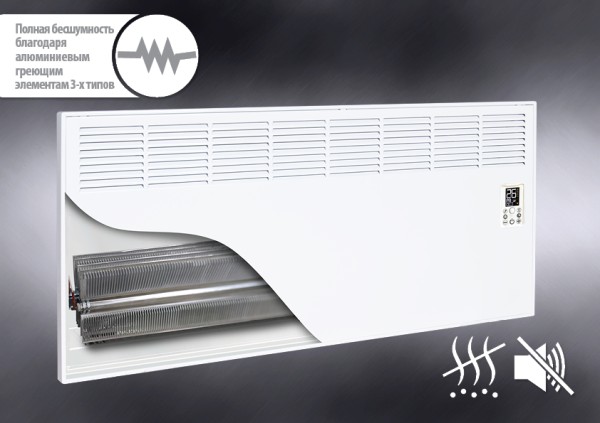

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Professional WIFI Panel Convector

Type

EPK 4550W05

EPK 4550W07

EPK 4570W10

EPK 4570W15

EPK 4590W20

EPK 4590W25

Height mm

450

450

450

450

450

450

Length mm

500

500

700

700

900

900

Depth mm

80

80

80

80

80

80

Weight kg

5.3

5.3

7.1

7.2

8.8

9.2

Electrical Power W

500

750

1000

1500

2000

2500

Voltage V

220-240

220-240

220-240

220-240

220-240

220-240

Current A

2,07-2,26

3,11-3,40

4,13-4,52

6,23-6,80

8,3-8,96

10,40-11,34

Frequency Hz

50-60

50-60

50-60

50-60

50-60

50-60

Electronic Room

Temperature Control

Standard

Standard

Standard

Standard

Standard

Standard

Energy Saving Module (Programmable)

Standard

Standard

Standard

Standard

Standard

Standard

On/Off Switch

Standard

Standard

Standard

Standard

Standard

Standard

Cord Length m

1.5

1.5

1.5

1.5

1.5

1.5

Protection Type

I

I

I

I

I

I

Thermostat Against Excessive Heat

Standard

Standard

Standard

Standard

Standard

Standard

Rollover protection switch

Standard

Standard

Standard

Standard

Standard

Standard

Mechanical Thermostat Control

-

-

-

-

-

-

Energy Consumption Display

Standard

Standard

Standard

Standard

Standard

Standard

Room Temperature Display

Standard

Standard

Standard

Standard

Standard

Standard

Real Time Clock

Standard

Standard

Standard

Standard

Standard

Standard

Energy Consumption Monitoring

Standard

Standard

Standard

Standard

Standard

Standard

Daily / Weekly Program

Standard

Standard

Standard

Standard

Standard

Standard

IPX4

Standard

Standard

Standard

Standard

Standard

Standard

WIFI

Standard

Standard

Standard

Standard

Standard

Standard

Motion Sensor

Standard

Standard

Standard

Standard

Standard

Standard

Adaptive Start Feature

Standard

Standard

Standard

Standard

Standard

Standard

Anti-Frost

Standard

Standard

Standard

Standard

Standard

Standard

Heating Power Limiter

Standard

Standard

Standard

Standard

Standard

Standard

Plastic Legs

Standard

Standard

Standard

Standard

Standard

Standard

Wall Mounting Kit

Standard

Standard

Standard

Standard

Standard

Standard

Color Choices

White

White

White

White

White

White

Device Lock

Standard

Standard

Standard

Standard

Standard

Standard



Standard

:

EN 60335-2-30

Material Structure

:

Cold Rolled Steel Iron  body: 0.80 mm, frame: 1.00 mm.

Surface  process

:

Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.

Color

:

RAL9016 (Standart)

Heating Unite Group

:

Aluminyum X type resistance and convectors

Quality Standard

:

CE, TUV, TS EN ISO 9001:2015, ECODESIGN

Heights

:

450 mm

Lengths

:

500-700-900 mm

Security

:

The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.

Guarantee

:

3 Years



Profesyonel WIFI Konvektör Model Seçimi

Model

Tavsiye Edilen Isıtıcı Gücü (watt)

Oda Alanı (m2)

EPK 4550  05

500

3 - 6

EPK 4550  07

750

4 - 9

EPK 4570  10

1000

6 - 12

EPK 4570  15

1500

9 - 17

EPK 4590  20

2000

12 - 24

EPK 4590  25

2500

14 - 28


ЭЛЕКТРИЧЕСКИЙ ПАНЕЛЬНЫЙ Конвектор | ГАРАНТИЙНЫЕ

1. Срок гарантии начинается с момента первичной продажи прибора и в течение следующих 3 лет.


2. Все материалы, комплектующие входят в гарантийный срок фирмы IVIGO.


3. Поломка прибора, возникшая из-за нарушения правилы техники безопасности и руководства эксплуатации в гарантию не входит.

Гарантия фирмы MASTAŞ MAKİNA KALIP SANAYI VE TİCARET A.Ş. не распространяется на дефекты и повреждения,вызванные неправильной эксплуатацией, а так же ниже перечисленные условия вне гарантии, если:

1. Будут изменены, стерты или неразборчиво прописаны в документах типовой или серийный номер прибора,дата продажи, либо повреждена пломба.

2. Дефекты вызваны изменением вследствии применения прибора с целью не соответствующей установленной сферы применения данного прибора,указанной в руководстве по эксплуатации.

3. Установка, настройка изделия будет производиться вне сервиса - лицами,не имеющими на то соответствующих полномочий и квалификации.

4. После продажи прибора на механические повреждения связанные с перевозкой, разгрузкой, загрузкой, хранением (трещины, разломы, царапины и т.п.), а также химические повреждения.

5. Повреждения, вызванные пожаром, ударом молниии и др.

6. Дефекты возникли вследствии низкого или чрезмерного электрического напряжения, использования незаземленной розетки, неполадок электрической системы, в которой использовалось данное изделие.

7. Дефекты, повреждения вызваны лицами – вне сервиса. Срок гарантийного обслуживания изделия указан на обратной стороне листа и действителен только для производственных дефектах. Гарантия будет расторгнута, если на гарантийном талоне будут изменены,стерты серийный номер прибора, дата продажи изделия,полное наименование модели.
