Smooth Front Face

Smooth Front Face

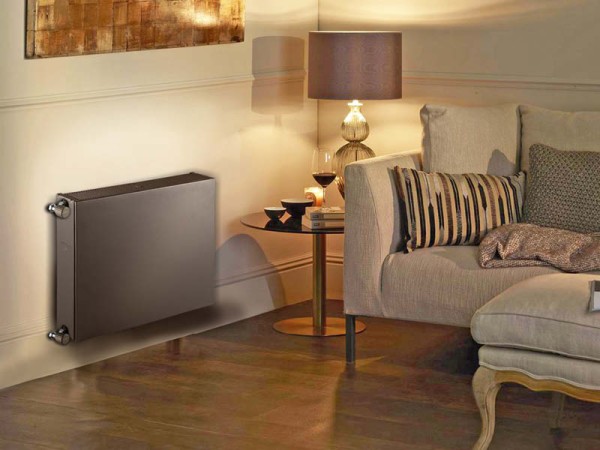

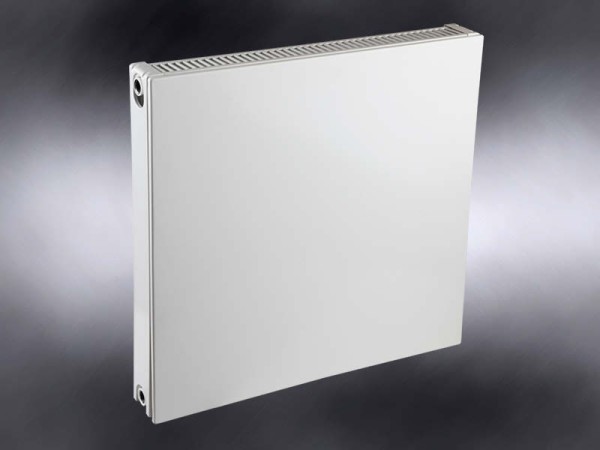

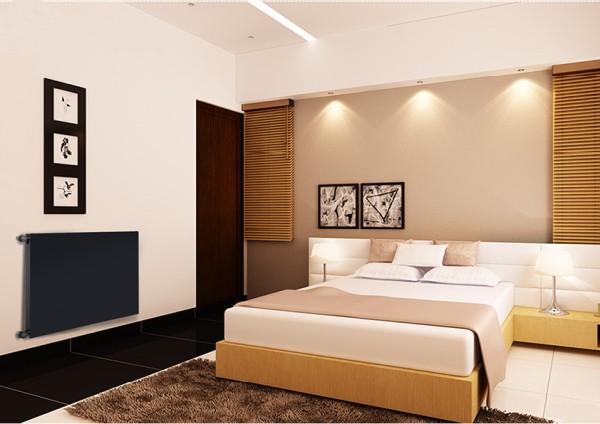

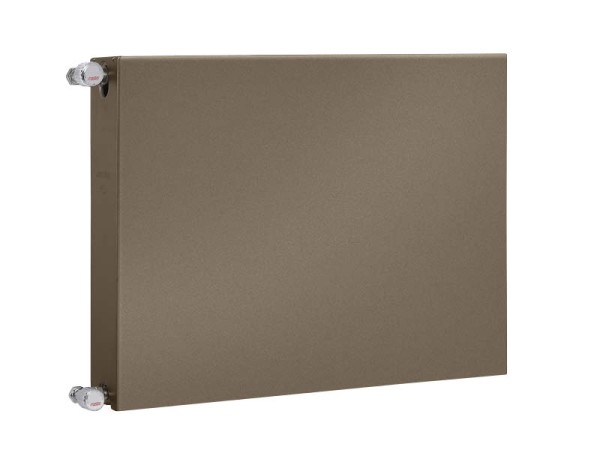

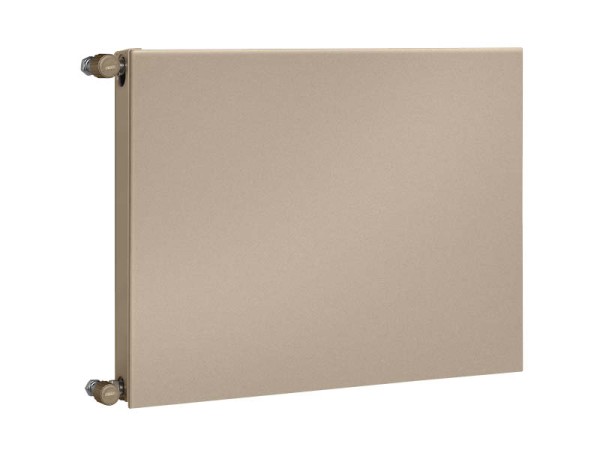

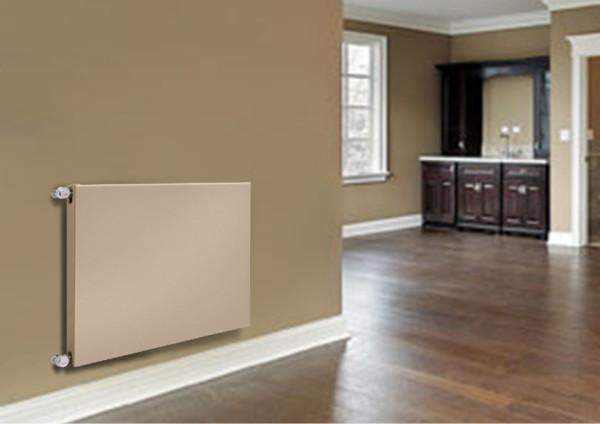

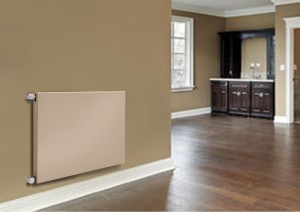

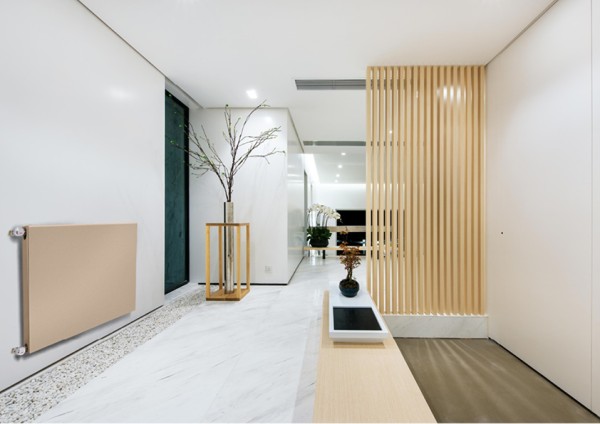

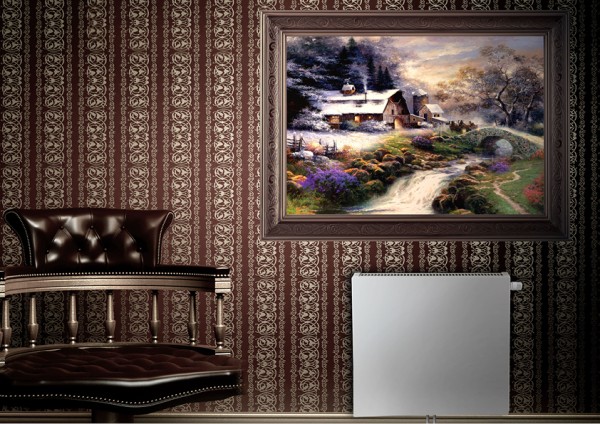

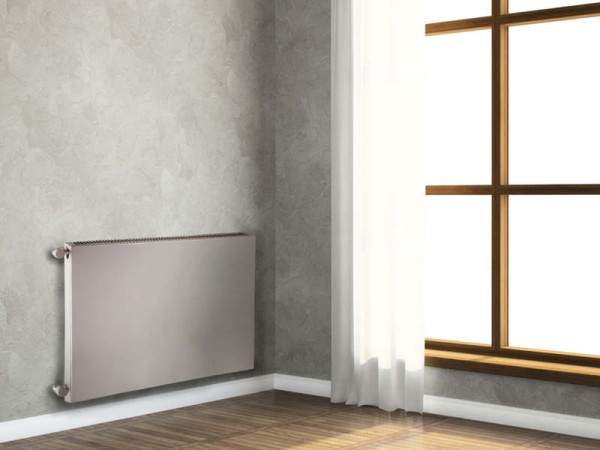

The most distinctive feature of Sava radiators is their flat surface. Due to its smooth front face, Sava radiators fit perfectly into an elegant atmosphere.

Special Choice Of Colours

Special Choice Of Colours

Sava comes with a special choice of colours for the heating needs of modern buildings.

High Quality Material

High Quality Material

They are made of high quality material and are durable, easy–to-clean and scratch resistant.

Standard

:

TS EN 442-2

Material Structure

:

Cold Rolled Steel

Surface Treatment

:

The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200°C).

Color

:

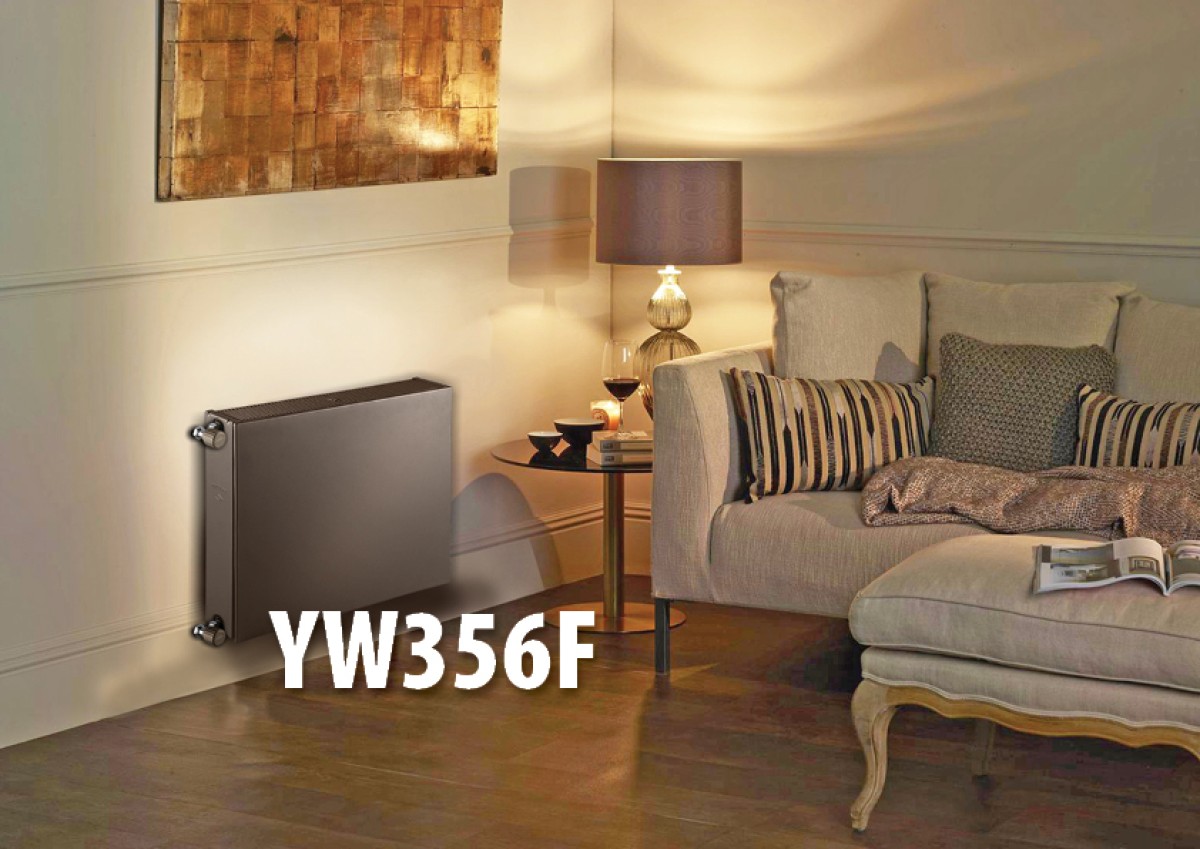

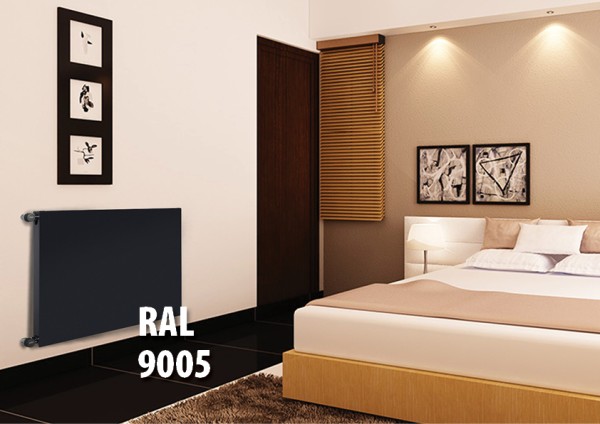

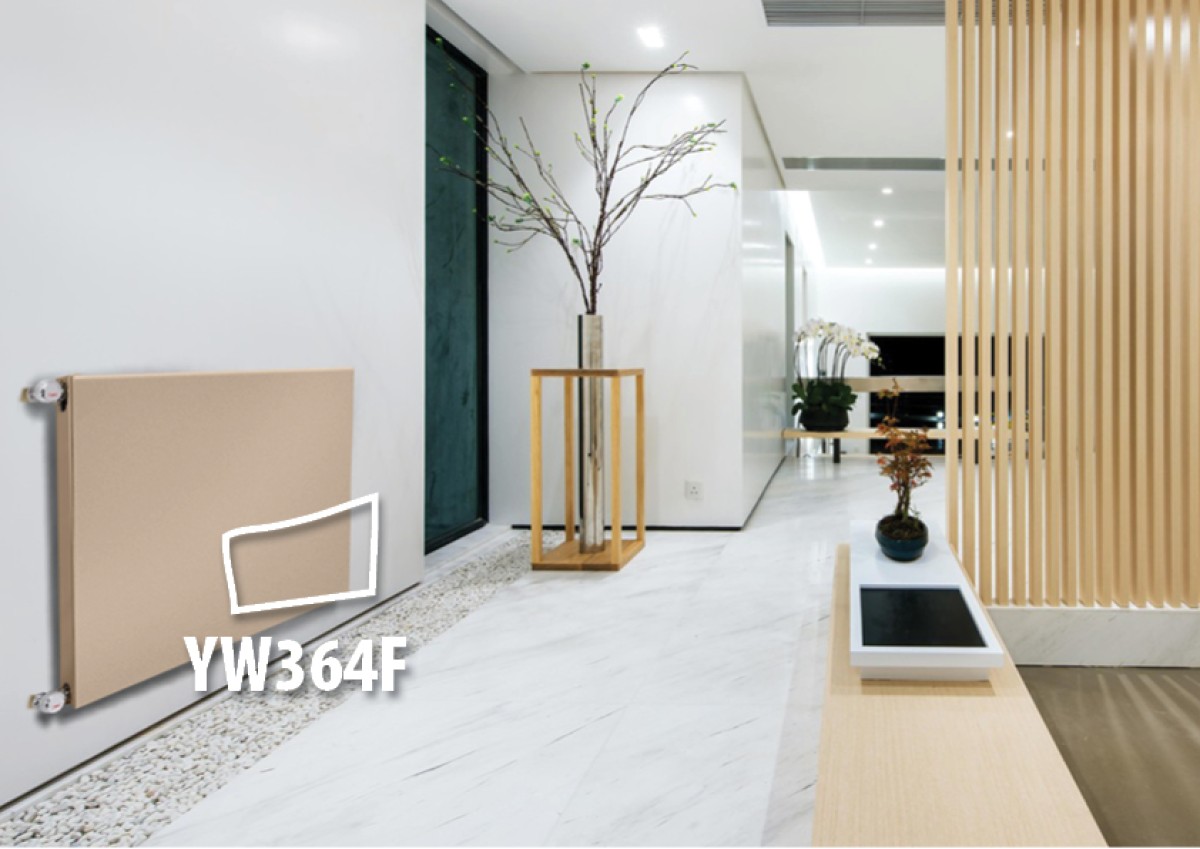

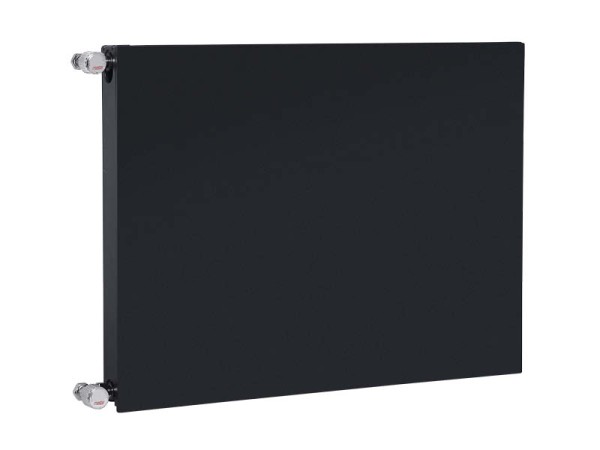

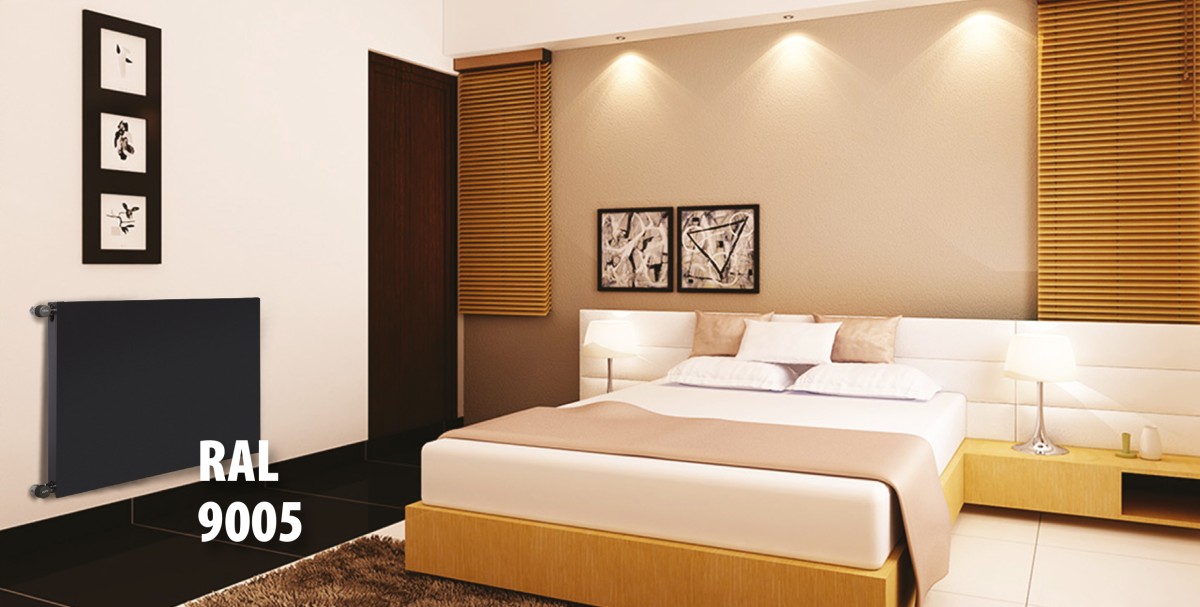

RAL 9016 (Standard color) Alternative Colors:RAL 9016 White Matte Beige Matte (YW364F), L. Brown Matte (YW364F) ve Black Matte (RAL 9005) The minimum order quantity is 10 mt. or 20 for alternative color products. The minimum order quantity is 350 mt. for the other colors than.

Working Pressure

:

9 Bar (10 bar can be produced as requested)

Quality Standard

:

TS EN ISO 9001 2015

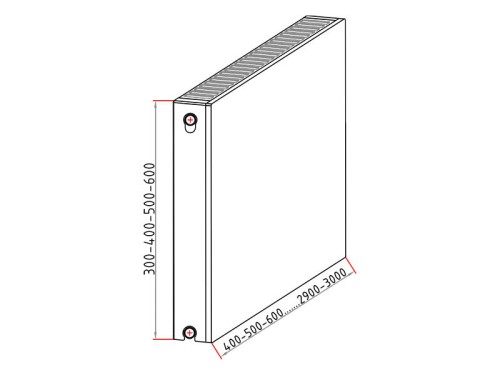

Heights

:

300-400-500-600-900 mm

Lengths

:

400 - 2200 mm

Water Temperature

:

0°C – 120°C

PH Value









:

Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be.

Montage

:

=<1400mm : 2 fixing brackets
>1400 mm : 3 fixing brackets

Guarantee

:

10 Years

Brand

:

 MASTAŞ

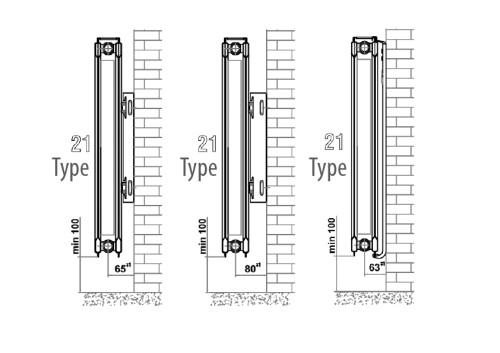

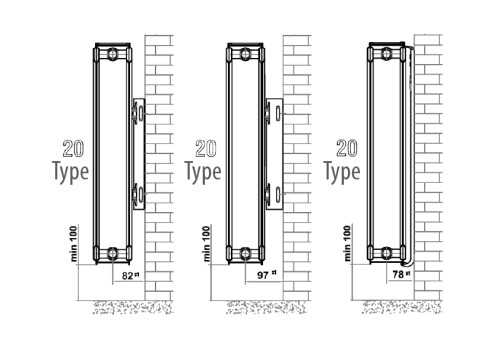

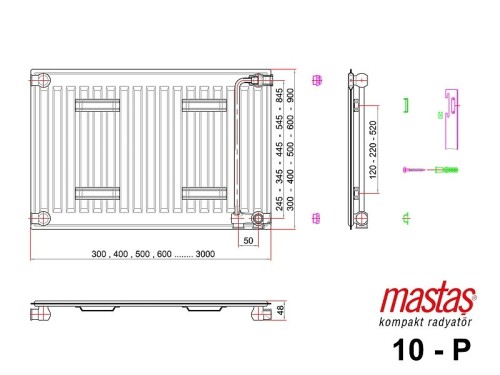

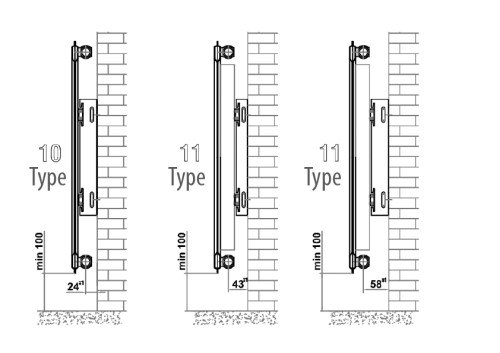

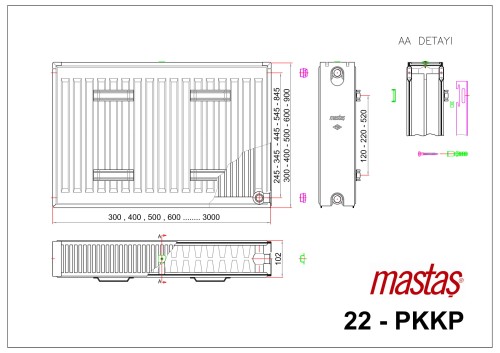

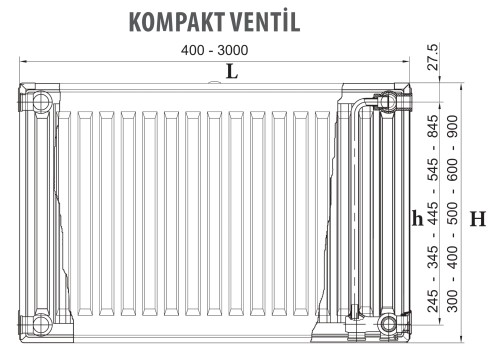

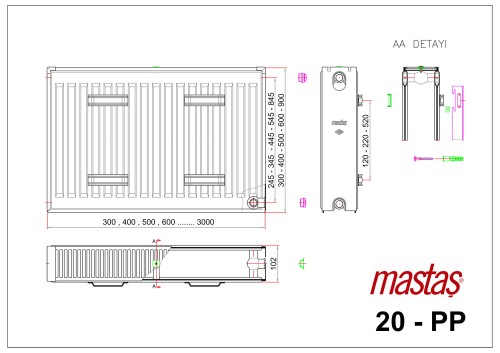

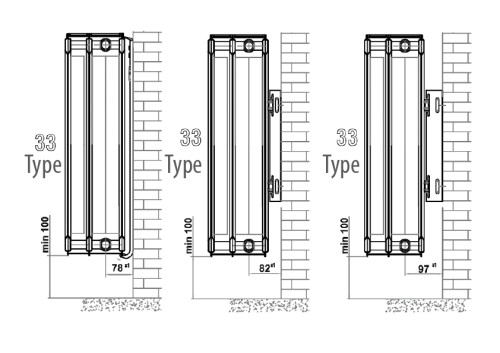

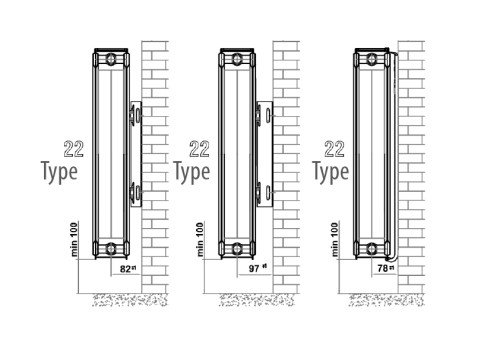

INSTALLATION DIMENSIONS

Radiator Length L (mm)

P - PK - PP - PKP - PKKP - PKKPKP

A  (mm)

B (mm)

C (mm)

D (mm)

400

102

196

-

-

500

136

228

-

-

600

169

262

-

-

700

169

362

-

-

800

169

462

-

-

900

169

562

-

-

1000

169

662

-

-

1100

169

762

-

-

1200

169

862

-

-

1300

169

962

-

-

1400

169

1062

-

-

1500

169

-

581

-

1600

169

-

631

-

1700

169

-

681

-

1800

169

-

731

-

1900

169

-

781

-

2000

169

-

831

-

2100

169

-

881

-

2200

169

-

931

-

2300

169

-

981

-

2400

169

-

-

687

2500

169

-

-

720

2600

169

-

-

754

2700

169

-

-

787

2800

169

-

-

820

2900

169

-

-

854

3000

169

-

-

887



Radiator Height H (mm)

PK

E (mm)

F (mm)

G (mm)

300

120

90

90

400

120

160

120

500

120

200

180

600

220

190

190

900

520

190

190



Radiator Height H (mm)

PKKP - PKP - PP

E (mm)

F (mm)

G (mm)

300

120

90

90

400

220

90

90

500

220

140

140

600

220

190

190

900

520

190

190



Quantity of Mounting Brackets

Panel Length L (mm)

Piece

L = 400 - 500 - 600 -... - 1400

4

L = 1500 - 1600 - 1700 -.. - 2300

6

L = 2400 - 2500 - 2600 -... - 3000

8

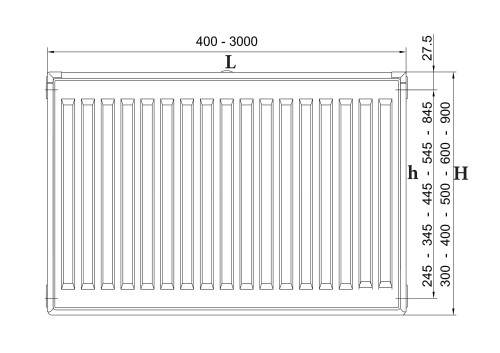

Model

Type



Height (H)

Dimensions (mm)

Weight Kg/m

Water Volume Lt/m

Heat Power

Axis Distance (h)

Depth

Length (min-max (L)

     T= 60 °C

90-70 / 20°C

T= 50 °C

75-65 / 20°C

kcal/h

Watt

kcal/h

Watt

SAVA*

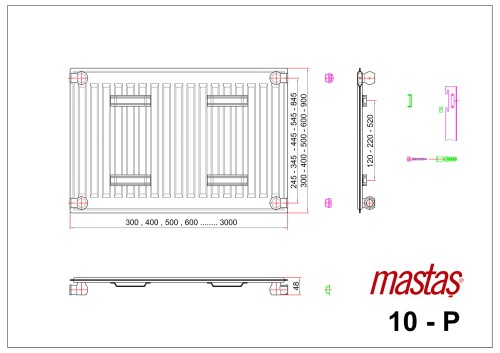

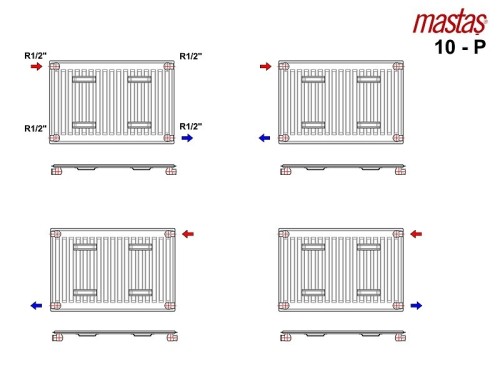

10 P

300

400

500

600

900

245

345

445

545

845

46

46

46

46

46

400-3000

400-3000

400-3000

400-3000

400-3000

5.6

8.1

10.6

12.0

17.4

1.8

2.1

2.4

2.7

4.9

364

460

553

641

895

423

535

643

746

1041

286

362

435

505

703

333

421

506

587

816

SAVA*

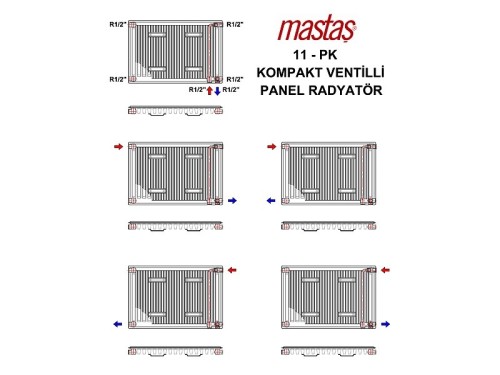

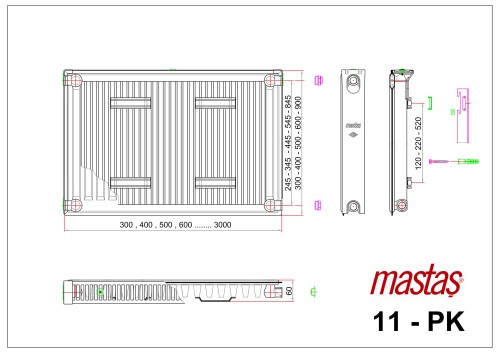

11 PK

300

400

500

600

900

245

345

445

545

845

46

46

46

46

46

400-3000

400-3000

400-3000

400-3000

400-3000

8.6

11.0

13.6

15.9

24.0

1.8

2.1

2.4

2.7

4.9

531

686

837

985

1412

616

798

974

1145

1642

419

515

660

776

1113

487

629

767

903

1294

SAVA*

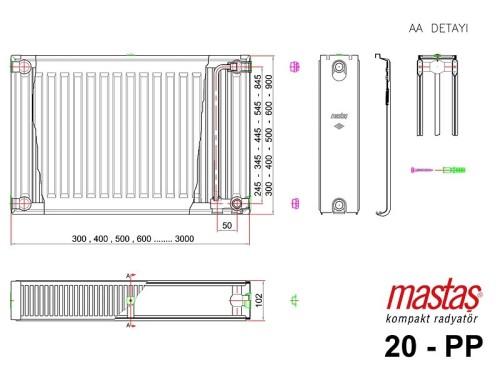

20 PP

300

400

500

600

900

245

345

445

545

845

67

67

67

67

67

400-3000

400-3000

400-3000

400-3000

400-3000

10.6

16.2

20.6

23.7

34.8

3.6

4.2

4.8

5.4

9.8

592

750

899

1045

1457

689

872

1046

1215

1694

466

590

708

822

1137

542

686

823

956

1322

SAVA*

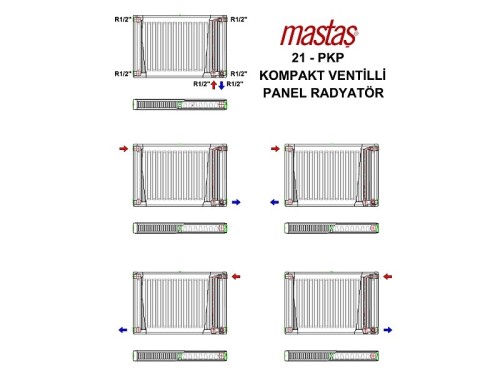

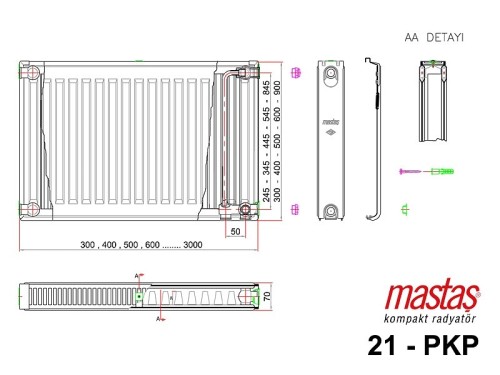

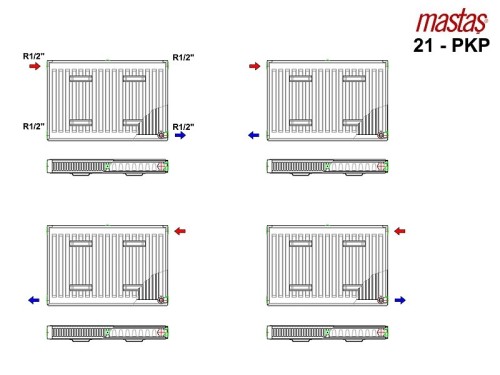

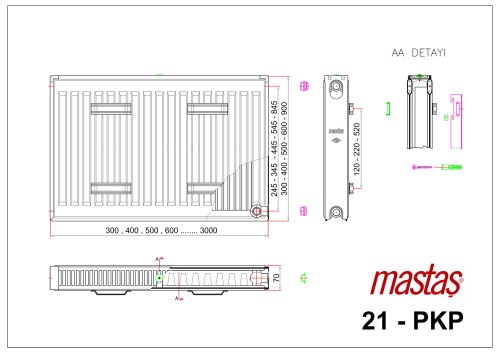

21 PKP

300

400

500

600

900

245

345

445

545

845

67

67

67

67

67

400-3000

400-3000

400-3000

400-3000

400-3000

13.6

16.3

23.8

27.8

41.3

3.6

4.2

4.8

5.4

9.8

782

1001

1200

1393

1937

921

1164

1396

1820

2253

623

788

944

1095

1524

724

918

1098

1274

1773

SAVA*

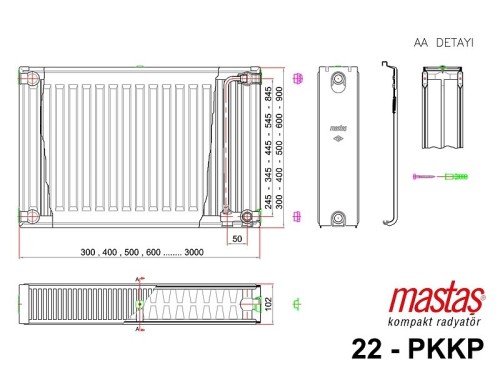

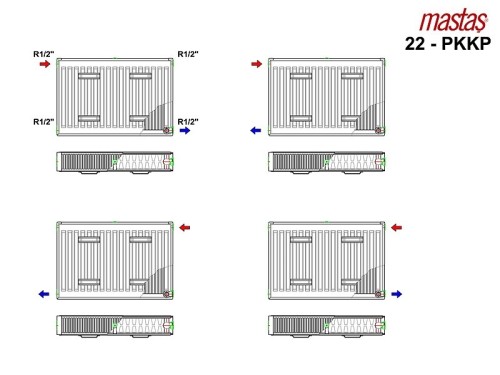

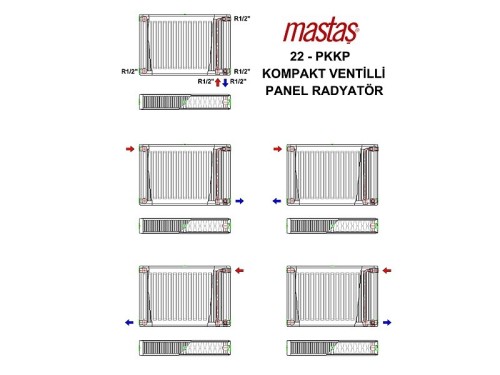

22 PKKP

300

400

500

600

900

245

345

445

545

845

102

102

102

102

102

400-3000

400-3000

400-3000

400-3000

400-3000

16.5

21.3

26.9

31.6

47.7

3.6

4.2

4.8

5.4

9.8

1034

1306

1570

1824

2542

1202

1521

1826

2121

2956

813

1026

1235

1434

1999

945

1195

1436

1668

2325

SAVA*

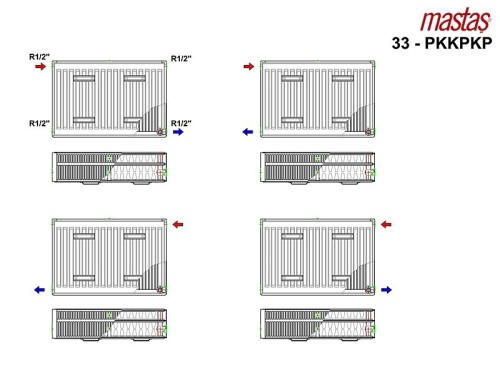

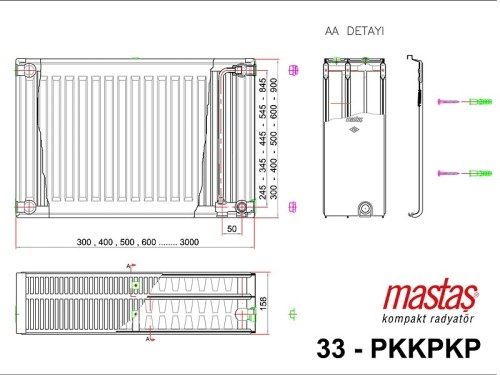

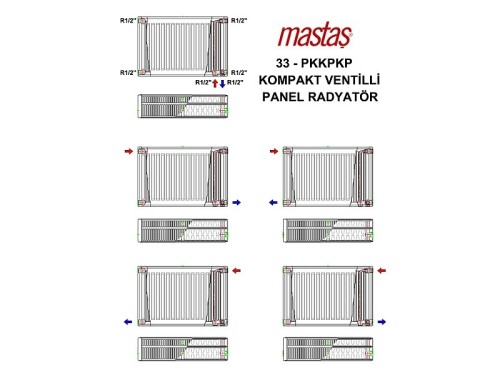

33 PKKPKP

300

400

500

600

900

245

345

445

545

845

160

160

160

160

160

400-3000

400-3000

400-3000

400-3000

400-3000

25.2

32.7

39.8

46.7

70.6

5.4

6.3

7.2

8.1

14.7

1433

1807

2163

2505

3472

1667

2102

2515

2913

4036

1127

1421

1701

1969

2730

1311

1653

1978

2291

3175

* Weights may vary within a range of +15% in Sava, Sahra models..

Sava Decorative Radiators | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening
